Install Kserve in Serverless Mode¶
To install KServe in serverless mode, you need to first install three components: Knative Serving, Networking Layer, and Cert Manager.
KServe provides a recommended version matrix for Knative Serving and Istio based on your Kubernetes version.

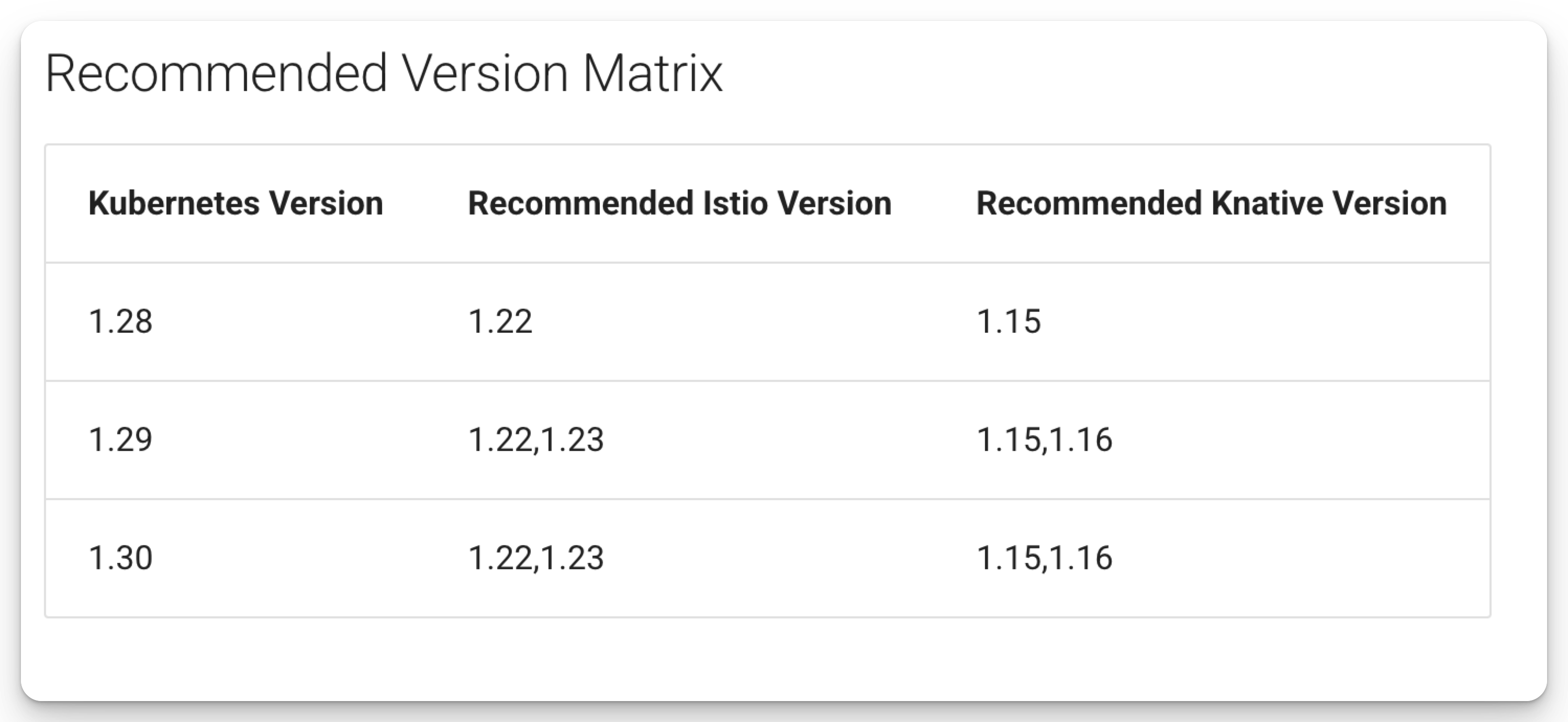

Recommended Version Matrix1
Since my Kubernetes version is 1.30, I will install the following versions:
- Knative Serving v1.15.0
- Istio v1.22.8
- Cert Manager v1.17.2
- KServe v0.15.1
Install Knative Serving2¶
Before install, nothing
Expected Output
Install the required custom resources by running the command:
kubectl apply -f https://github.com/knative/serving/releases/download/knative-v1.15.0/serving-crds.yaml
Expected Output
customresourcedefinition.apiextensions.k8s.io/certificates.networking.internal.knative.dev created
customresourcedefinition.apiextensions.k8s.io/configurations.serving.knative.dev created
customresourcedefinition.apiextensions.k8s.io/clusterdomainclaims.networking.internal.knative.dev created
customresourcedefinition.apiextensions.k8s.io/domainmappings.serving.knative.dev created
customresourcedefinition.apiextensions.k8s.io/ingresses.networking.internal.knative.dev created
customresourcedefinition.apiextensions.k8s.io/metrics.autoscaling.internal.knative.dev created
customresourcedefinition.apiextensions.k8s.io/podautoscalers.autoscaling.internal.knative.dev created
customresourcedefinition.apiextensions.k8s.io/revisions.serving.knative.dev created
customresourcedefinition.apiextensions.k8s.io/routes.serving.knative.dev created
customresourcedefinition.apiextensions.k8s.io/serverlessservices.networking.internal.knative.dev created
customresourcedefinition.apiextensions.k8s.io/services.serving.knative.dev created
customresourcedefinition.apiextensions.k8s.io/images.caching.internal.knative.dev created
Deploy the core components of Knative Serving to you Kubernetes cluster (namespace knative-serving) by running the command:
kubectl apply -f https://github.com/knative/serving/releases/download/knative-v1.15.0/serving-core.yaml
Expected Output
namespace/knative-serving created
role.rbac.authorization.k8s.io/knative-serving-activator created
clusterrole.rbac.authorization.k8s.io/knative-serving-activator-cluster created
clusterrole.rbac.authorization.k8s.io/knative-serving-aggregated-addressable-resolver created
clusterrole.rbac.authorization.k8s.io/knative-serving-addressable-resolver created
clusterrole.rbac.authorization.k8s.io/knative-serving-namespaced-admin created
clusterrole.rbac.authorization.k8s.io/knative-serving-namespaced-edit created
clusterrole.rbac.authorization.k8s.io/knative-serving-namespaced-view created
clusterrole.rbac.authorization.k8s.io/knative-serving-core created
clusterrole.rbac.authorization.k8s.io/knative-serving-podspecable-binding created
serviceaccount/controller created
clusterrole.rbac.authorization.k8s.io/knative-serving-admin created
clusterrolebinding.rbac.authorization.k8s.io/knative-serving-controller-admin created
clusterrolebinding.rbac.authorization.k8s.io/knative-serving-controller-addressable-resolver created
serviceaccount/activator created
rolebinding.rbac.authorization.k8s.io/knative-serving-activator created
clusterrolebinding.rbac.authorization.k8s.io/knative-serving-activator-cluster created
customresourcedefinition.apiextensions.k8s.io/images.caching.internal.knative.dev unchanged
certificate.networking.internal.knative.dev/routing-serving-certs created
customresourcedefinition.apiextensions.k8s.io/certificates.networking.internal.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/configurations.serving.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/clusterdomainclaims.networking.internal.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/domainmappings.serving.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/ingresses.networking.internal.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/metrics.autoscaling.internal.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/podautoscalers.autoscaling.internal.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/revisions.serving.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/routes.serving.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/serverlessservices.networking.internal.knative.dev unchanged
customresourcedefinition.apiextensions.k8s.io/services.serving.knative.dev unchanged
image.caching.internal.knative.dev/queue-proxy created
configmap/config-autoscaler created
configmap/config-certmanager created
configmap/config-defaults created
configmap/config-deployment created
configmap/config-domain created
configmap/config-features created
configmap/config-gc created
configmap/config-leader-election created
configmap/config-logging created
configmap/config-network created
configmap/config-observability created
configmap/config-tracing created
horizontalpodautoscaler.autoscaling/activator created
poddisruptionbudget.policy/activator-pdb created
deployment.apps/activator created
service/activator-service created
deployment.apps/autoscaler created
service/autoscaler created
deployment.apps/controller created
service/controller created
horizontalpodautoscaler.autoscaling/webhook created
poddisruptionbudget.policy/webhook-pdb created
deployment.apps/webhook created
service/webhook created
validatingwebhookconfiguration.admissionregistration.k8s.io/config.webhook.serving.knative.dev created
mutatingwebhookconfiguration.admissionregistration.k8s.io/webhook.serving.knative.dev created
validatingwebhookconfiguration.admissionregistration.k8s.io/validation.webhook.serving.knative.dev created
secret/webhook-certs created
Once the deployment finished, you can see knative-serving namespace created and all the resources inside:
Expected Output
Expected Output
kubectl get all -n knative-serving
NAME READY STATUS RESTARTS AGE
pod/activator-bccd57594-l5n5m 1/1 Running 0 3m16s
pod/autoscaler-7c6d8b8456-lwn6b 1/1 Running 0 3m16s
pod/controller-6458dc4845-bv7st 1/1 Running 0 3m16s
pod/webhook-68b5b4c69-8jv7q 1/1 Running 0 3m16s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/activator-service ClusterIP 10.110.50.161 <none> 9090/TCP,8008/TCP,80/TCP,81/TCP,443/TCP 3m16s
service/autoscaler ClusterIP 10.105.23.244 <none> 9090/TCP,8008/TCP,8080/TCP 3m16s
service/autoscaler-bucket-00-of-01 ClusterIP 10.108.159.205 <none> 8080/TCP 2m55s
service/controller ClusterIP 10.110.203.67 <none> 9090/TCP,8008/TCP 3m16s
service/webhook ClusterIP 10.104.187.107 <none> 9090/TCP,8008/TCP,443/TCP 3m16s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/activator 1/1 1 1 3m16s
deployment.apps/autoscaler 1/1 1 1 3m16s
deployment.apps/controller 1/1 1 1 3m16s
deployment.apps/webhook 1/1 1 1 3m16s
NAME DESIRED CURRENT READY AGE
replicaset.apps/activator-bccd57594 1 1 1 3m16s
replicaset.apps/autoscaler-7c6d8b8456 1 1 1 3m16s
replicaset.apps/controller-6458dc4845 1 1 1 3m16s
replicaset.apps/webhook-68b5b4c69 1 1 1 3m16s
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE
horizontalpodautoscaler.autoscaling/activator Deployment/activator cpu: <unknown>/100% 1 20 1 3m16s
horizontalpodautoscaler.autoscaling/webhook Deployment/webhook cpu: <unknown>/100% 1 5 1 3m16s
部署完成後，可以看到有以下這四個pods，分別負責
- activator
- autoscaler
- controller
- webhook
Install Networking Layer - Istio3¶
Install Istio 1.22.8 on the home directory
Expected Output
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 102 100 102 0 0 350 0 --:--:-- --:--:-- --:--:-- 351
100 5124 100 5124 0 0 6834 0 --:--:-- --:--:-- --:--:-- 13343
Downloading istio-1.22.8 from https://github.com/istio/istio/releases/download/1.22.8/istio-1.22.8-osx-arm64.tar.gz ...
Istio 1.22.8 download complete!
The Istio release archive has been downloaded to the istio-1.22.8 directory.
To configure the istioctl client tool for your workstation,
add the /Users/kcl/istio-1.22.8/bin directory to your environment path variable with:
export PATH="$PATH:/Users/kcl/istio-1.22.8/bin"
Begin the Istio pre-installation check by running:
istioctl x precheck
Try Istio in ambient mode
https://istio.io/latest/docs/ambient/getting-started/
Try Istio in sidecar mode
https://istio.io/latest/docs/setup/getting-started/
Install guides for ambient mode
https://istio.io/latest/docs/ambient/install/
Install guides for sidecar mode
https://istio.io/latest/docs/setup/install/
Need more information? Visit https://istio.io/latest/docs/
Add the $HOME/istio-1.22.8/bin directory to your environment path variable
Check the versions
Expected Output
You can easily install and customize your Istio installation with istioctl. It will deploy the resources to your kubernetes cluster in the namespace istio-system
Expected Output
WARNING: Istio 1.22.0 may be out of support (EOL) already: see https://istio.io/latest/docs/releases/supported-releases/ for supported releases
✔ Istio core installed
✔ Istiod installed
✔ Ingress gateways installed
✔ Installation complete
Made this installation the default for injection and validation.
Check all the deployed resources
Expected Output
Expected Output
NAME READY STATUS RESTARTS AGE
pod/istio-ingressgateway-767ff7b4b6-7wxzk 1/1 Running 0 5m52s
pod/istiod-7bc77d764b-vh66z 1/1 Running 0 6m18s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/istio-ingressgateway LoadBalancer 10.97.252.211 <pending> 15021:32213/TCP,80:31540/TCP,443:30462/TCP 5m52s
service/istiod ClusterIP 10.96.206.177 <none> 15010/TCP,15012/TCP,443/TCP,15014/TCP 6m18s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/istio-ingressgateway 1/1 1 1 5m52s
deployment.apps/istiod 1/1 1 1 6m19s
NAME DESIRED CURRENT READY AGE
replicaset.apps/istio-ingressgateway-767ff7b4b6 1 1 1 5m52s
replicaset.apps/istiod-7bc77d764b 1 1 1 6m18s
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE
horizontalpodautoscaler.autoscaling/istio-ingressgateway Deployment/istio-ingressgateway cpu: <unknown>/80% 1 5 1 5m52s
horizontalpodautoscaler.autoscaling/istiod Deployment/istiod cpu: <unknown>/80% 1 5 1 6m18s
說明
- istio-ingressgateway
- istiod
- external-ip pending
Integrate Istio with Knative Serving3¶
To integrate Istio with Knative Serving install the Knative Istio controller by running the command
kubectl apply -f https://github.com/knative/net-istio/releases/download/knative-v1.15.0/net-istio.yaml
Expected Output
clusterrole.rbac.authorization.k8s.io/knative-serving-istio created
gateway.networking.istio.io/knative-ingress-gateway created
gateway.networking.istio.io/knative-local-gateway created
service/knative-local-gateway created
configmap/config-istio created
peerauthentication.security.istio.io/webhook created
peerauthentication.security.istio.io/net-istio-webhook created
deployment.apps/net-istio-controller created
deployment.apps/net-istio-webhook created
secret/net-istio-webhook-certs created
service/net-istio-webhook created
mutatingwebhookconfiguration.admissionregistration.k8s.io/webhook.istio.networking.internal.knative.dev created
validatingwebhookconfiguration.admissionregistration.k8s.io/config.webhook.istio.networking.internal.knative.dev created
Verify the integration
Expected Output
NAME READY STATUS RESTARTS AGE
pod/activator-bccd57594-l5n5m 1/1 Running 0 28m
pod/autoscaler-7c6d8b8456-lwn6b 1/1 Running 0 28m
pod/controller-6458dc4845-bv7st 1/1 Running 0 28m
pod/net-istio-controller-6b847d477f-5vtcd 1/1 Running 0 102s
pod/net-istio-webhook-856498bfc7-tswxz 1/1 Running 0 102s
pod/webhook-68b5b4c69-8jv7q 1/1 Running 0 28m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/activator-service ClusterIP 10.110.50.161 <none> 9090/TCP,8008/TCP,80/TCP,81/TCP,443/TCP 28m
service/autoscaler ClusterIP 10.105.23.244 <none> 9090/TCP,8008/TCP,8080/TCP 28m
service/autoscaler-bucket-00-of-01 ClusterIP 10.108.159.205 <none> 8080/TCP 27m
service/controller ClusterIP 10.110.203.67 <none> 9090/TCP,8008/TCP 28m
service/net-istio-webhook ClusterIP 10.97.168.104 <none> 9090/TCP,8008/TCP,443/TCP 102s
service/webhook ClusterIP 10.104.187.107 <none> 9090/TCP,8008/TCP,443/TCP 28m
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/activator 1/1 1 1 28m
deployment.apps/autoscaler 1/1 1 1 28m
deployment.apps/controller 1/1 1 1 28m
deployment.apps/net-istio-controller 1/1 1 1 102s
deployment.apps/net-istio-webhook 1/1 1 1 102s
deployment.apps/webhook 1/1 1 1 28m
NAME DESIRED CURRENT READY AGE
replicaset.apps/activator-bccd57594 1 1 1 28m
replicaset.apps/autoscaler-7c6d8b8456 1 1 1 28m
replicaset.apps/controller-6458dc4845 1 1 1 28m
replicaset.apps/net-istio-controller-6b847d477f 1 1 1 102s
replicaset.apps/net-istio-webhook-856498bfc7 1 1 1 102s
replicaset.apps/webhook-68b5b4c69 1 1 1 28m
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE
horizontalpodautoscaler.autoscaling/activator Deployment/activator cpu: <unknown>/100% 1 20 1 28m
horizontalpodautoscaler.autoscaling/webhook Deployment/webhook cpu: <unknown>/100% 1 5 1 28m
Verify the installation for Istio
Expected Output
kubectl get all -n istio-system
NAME READY STATUS RESTARTS AGE
pod/istio-ingressgateway-767ff7b4b6-7wxzk 1/1 Running 0 12m
pod/istiod-7bc77d764b-vh66z 1/1 Running 0 13m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/istio-ingressgateway LoadBalancer 10.97.252.211 <pending> 15021:32213/TCP,80:31540/TCP,443:30462/TCP 12m
service/istiod ClusterIP 10.96.206.177 <none> 15010/TCP,15012/TCP,443/TCP,15014/TCP 13m
service/knative-local-gateway ClusterIP 10.101.124.46 <none> 80/TCP,443/TCP 4m27s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/istio-ingressgateway 1/1 1 1 12m
deployment.apps/istiod 1/1 1 1 13m
NAME DESIRED CURRENT READY AGE
replicaset.apps/istio-ingressgateway-767ff7b4b6 1 1 1 12m
replicaset.apps/istiod-7bc77d764b 1 1 1 13m
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE
horizontalpodautoscaler.autoscaling/istio-ingressgateway Deployment/istio-ingressgateway cpu: <unknown>/80% 1 5 1 12m
horizontalpodautoscaler.autoscaling/istiod Deployment/istiod cpu: <unknown>/80% 1 5 1 13m
Configure DNS4¶
You can configure DNS to prevent the need to run curl commands with a host header. Knative provides a Kubernetes Job called default-domain that configures Knative Serving to use sslip.io as the default DNS suffix. This will only work if the cluster LoadBalancer Service exposes an IPv4 address or hostname, so it will not work with IPv6 clusters or local setups like minikube unless minikube tunnel is running.
First, run the minikube tunnel command:
Expected Output
✅ Tunnel successfully started
📌 NOTE: Please do not close this terminal as this process must stay alive for the tunnel to be accessible ...
❗ The service/ingress istio-ingressgateway requires privileged ports to be exposed: [80 443]
🔑 sudo permission will be asked for it.
🏃 Starting tunnel for service istio-ingressgateway.
You can see that the Istio Ingress Gayeway now has external IP:
Expected Output
Then we run the default-domain job to configure Knative Serving to use sslip.io as the default DNS suffix
kubectl apply -f https://github.com/knative/serving/releases/download/knative-v1.15.0/serving-default-domain.yaml
Install Cert Manager5¶
安裝前，namespaces裡沒有cert-manager
NAME STATUS AGE
default Active 15d
istio-system Active 35m
knative-serving Active 53m
kube-node-lease Active 15d
kube-public Active 15d
kube-system Active 15d
部署Cert Manager
kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.2/cert-manager.yaml
Expected Output
namespace/cert-manager created
customresourcedefinition.apiextensions.k8s.io/certificaterequests.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/certificates.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/challenges.acme.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/clusterissuers.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/issuers.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/orders.acme.cert-manager.io created
serviceaccount/cert-manager-cainjector created
serviceaccount/cert-manager created
serviceaccount/cert-manager-webhook created
clusterrole.rbac.authorization.k8s.io/cert-manager-cainjector created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-issuers created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-clusterissuers created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-certificates created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-orders created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-challenges created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-ingress-shim created
clusterrole.rbac.authorization.k8s.io/cert-manager-cluster-view created
clusterrole.rbac.authorization.k8s.io/cert-manager-view created
clusterrole.rbac.authorization.k8s.io/cert-manager-edit created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-approve:cert-manager-io created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-certificatesigningrequests created
clusterrole.rbac.authorization.k8s.io/cert-manager-webhook:subjectaccessreviews created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-cainjector created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-issuers created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-clusterissuers created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-certificates created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-orders created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-challenges created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-ingress-shim created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-approve:cert-manager-io created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-certificatesigningrequests created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-webhook:subjectaccessreviews created
role.rbac.authorization.k8s.io/cert-manager-cainjector:leaderelection created
role.rbac.authorization.k8s.io/cert-manager:leaderelection created
role.rbac.authorization.k8s.io/cert-manager-tokenrequest created
role.rbac.authorization.k8s.io/cert-manager-webhook:dynamic-serving created
rolebinding.rbac.authorization.k8s.io/cert-manager-cainjector:leaderelection created
rolebinding.rbac.authorization.k8s.io/cert-manager:leaderelection created
rolebinding.rbac.authorization.k8s.io/cert-manager-cert-manager-tokenrequest created
rolebinding.rbac.authorization.k8s.io/cert-manager-webhook:dynamic-serving created
service/cert-manager-cainjector created
service/cert-manager created
service/cert-manager-webhook created
deployment.apps/cert-manager-cainjector created
deployment.apps/cert-manager created
deployment.apps/cert-manager-webhook created
mutatingwebhookconfiguration.admissionregistration.k8s.io/cert-manager-webhook created
validatingwebhookconfiguration.admissionregistration.k8s.io/cert-manager-webhook created
來看看部署了哪些東西
Expected Output
Expected Output
NAME READY STATUS RESTARTS AGE
pod/cert-manager-6687d8765c-v8zfd 1/1 Running 0 3m55s
pod/cert-manager-cainjector-764498cfc8-m7rs2 1/1 Running 0 3m55s
pod/cert-manager-webhook-74c74b87d7-dsz9x 1/1 Running 0 3m55s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/cert-manager ClusterIP 10.96.219.58 <none> 9402/TCP 3m55s
service/cert-manager-cainjector ClusterIP 10.109.144.231 <none> 9402/TCP 3m55s
service/cert-manager-webhook ClusterIP 10.107.111.91 <none> 443/TCP,9402/TCP 3m55s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/cert-manager 1/1 1 1 3m55s
deployment.apps/cert-manager-cainjector 1/1 1 1 3m55s
deployment.apps/cert-manager-webhook 1/1 1 1 3m55s
NAME DESIRED CURRENT READY AGE
replicaset.apps/cert-manager-6687d8765c 1 1 1 3m55s
replicaset.apps/cert-manager-cainjector-764498cfc8 1 1 1 3m55s
replicaset.apps/cert-manager-webhook-74c74b87d7 1 1 1 3m55s
Install KServe6¶
Install KServe CRDs
Expected Output
Deploy KServe
Expected Output
Expected Output
NAME READY STATUS RESTARTS AGE
pod/kserve-controller-manager-6cb87dcc55-2zrgm 2/2 Running 0 2m38s
pod/modelmesh-controller-6f5bdb97db-878bb 1/1 Running 0 2m38s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kserve-controller-manager-service ClusterIP 10.97.113.121 <none> 8443/TCP 2m38s
service/kserve-webhook-server-service ClusterIP 10.103.116.193 <none> 443/TCP 2m38s
service/modelmesh-serving ClusterIP None <none> 8033/TCP,8008/TCP,2112/TCP 2m4s
service/modelmesh-webhook-server-service ClusterIP 10.97.175.193 <none> 9443/TCP 2m38s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/kserve-controller-manager 1/1 1 1 2m38s
deployment.apps/modelmesh-controller 1/1 1 1 2m38s
deployment.apps/modelmesh-serving-mlserver-1.x 0/0 0 0 2m4s
deployment.apps/modelmesh-serving-ovms-1.x 0/0 0 0 2m4s
deployment.apps/modelmesh-serving-torchserve-0.x 0/0 0 0 2m4s
deployment.apps/modelmesh-serving-triton-2.x 0/0 0 0 2m4s
NAME DESIRED CURRENT READY AGE
replicaset.apps/kserve-controller-manager-6cb87dcc55 1 1 1 2m38s
replicaset.apps/modelmesh-controller-6f5bdb97db 1 1 1 2m38s
replicaset.apps/modelmesh-serving-mlserver-1.x-57d65d9fdd 0 0 0 2m4s
replicaset.apps/modelmesh-serving-ovms-1.x-5488c8f4f9 0 0 0 2m4s
replicaset.apps/modelmesh-serving-torchserve-0.x-67f9485cb9 0 0 0 2m4s
replicaset.apps/modelmesh-serving-triton-2.x-66756bc646 0 0 0 2m4s
Summary¶
Install and Uninstall KServe Scripts
install.sh
#!/bin/bash
set -e
echo "🚀 Installing Knative + Istio + KServe..."
# Install Knative Serving CRDs and Core
kubectl apply -f https://github.com/knative/serving/releases/download/knative-v1.15.0/serving-crds.yaml
kubectl apply -f https://github.com/knative/serving/releases/download/knative-v1.15.0/serving-core.yaml
# Download and install Istio
curl -L https://istio.io/downloadIstio | ISTIO_VERSION=1.22.8 DESTDIR=$HOME sh -
export PATH="$PATH:$HOME/istio-1.22.8/bin"
# Add Istio to .zshrc if not already present
grep -qxF 'export PATH="$PATH:$HOME/istio-1.22.8/bin"' ~/.zshrc || echo 'export PATH="$PATH:$HOME/istio-1.22.8/bin"' >> ~/.zshrc
# Install Istio components
$HOME/istio-1.22.8/bin/istioctl install -y
# Install Knative net-istio integration
kubectl apply -f https://github.com/knative/net-istio/releases/download/knative-v1.15.0/net-istio.yaml
# Install cert-manager
kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.2/cert-manager.yaml
# Create namespace for KServe (if not already exists)
kubectl create ns kserve --dry-run=client -o yaml | kubectl apply -f -
# Install KServe CRDs and components
helm install kserve-crd oci://ghcr.io/kserve/charts/kserve-crd \
--version v0.15.1 \
-n kserve
helm install kserve oci://ghcr.io/kserve/charts/kserve \
--version v0.15.1 \
-n kserve
echo "✅ Installation complete. You may want to run:"
echo " source ~/.zshrc"
uninstall.sh
#!/bin/bash
set -e
echo "Uninstalling KServe, Knative, Istio, and Cert-Manager..."
# Uninstall KServe
helm uninstall kserve -n kserve || echo "kserve not found"
helm uninstall kserve-crd -n kserve || echo "kserve-crd not found"
kubectl delete ns kserve --ignore-not-found
# Uninstall cert-manager
kubectl delete -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.2/cert-manager.yaml || echo "cert-manager not installed"
kubectl delete ns cert-manager --ignore-not-found
# Uninstall Knative net-istio and serving
kubectl delete -f https://github.com/knative/net-istio/releases/download/knative-v1.15.0/net-istio.yaml || echo "net-istio not installed"
kubectl delete -f https://github.com/knative/serving/releases/download/knative-v1.15.0/serving-core.yaml || echo "knative-core not installed"
kubectl delete -f https://github.com/knative/serving/releases/download/knative-v1.15.0/serving-crds.yaml || echo "knative-crds not installed"
# Uninstall Istio
$HOME/istio-1.22.8/bin/istioctl uninstall --purge -y || echo "istioctl uninstall failed"
kubectl delete ns istio-system --ignore-not-found
# Optional: Remove istioctl binary and path from .zshrc
echo "Cleaning up istioctl binary and .zshrc entry..."
sed -i '' '/istio-1.22.8\/bin/d' ~/.zshrc 2>/dev/null || true
rm -rf $HOME/istio-1.22.8
echo "Uninstallation completed."
