Deep Dive into Kafka Connect Icerberg Sink Connector¶
Apache Iceberg provides a Kafka Connect Sink Connector that writes data from Kafka topics into Iceberg tables. This connector supports Exactly-Once Semantics (EOS), ensuring that each message is written to the target Iceberg table exactly once, preventing data duplication.
The sink relies on KIP-447 for exactly-once semantics. This requires Kafka 2.5 or later.
The Iceberg Kafka Connect Sink Connector documentation explicitly states that this connector relies on KIP-447. In order to understand how it achieves exactly-once semantics, we need to first examine KIP-447.
KIP-447: Producer scalability for exactly once semantics¶
Prior to KIP-447, the Transaction Coordinator was unaware that consumer group partition assignments could change dynamically through rebalancing. This resulted in an expectation that each transactional producer would be bound to a single source topic partition. Consequently, each source topic partition required its own dedicated producer instance with separate threads, caches, and network connections. This approach not only consumed excessive resources but also negatively impacted output batching efficiency, leading to poor overall scalability.
KIP-447 aims to enable a single Transactional Producer to handle multiple source topic partitions simultaneously. The solution involves allowing the Transaction Coordinator to track consumer metadata, enabling it to determine whether zombie producers should be fenced, whether a producer can take over certain source partitions, and make reasonable decisions when partition assignments change. This eliminates the need for a static assignment architecture. A single producer instance can now handle offset commits for multiple source partitions and writes to multiple destination partitions, significantly reducing resource consumption while improving output throughput, scalability, efficiency, and resource utilization.
After knowing the above, we can now look at how Iceberg Kafka Connect Sink Connector achieve exactly-once semantics.

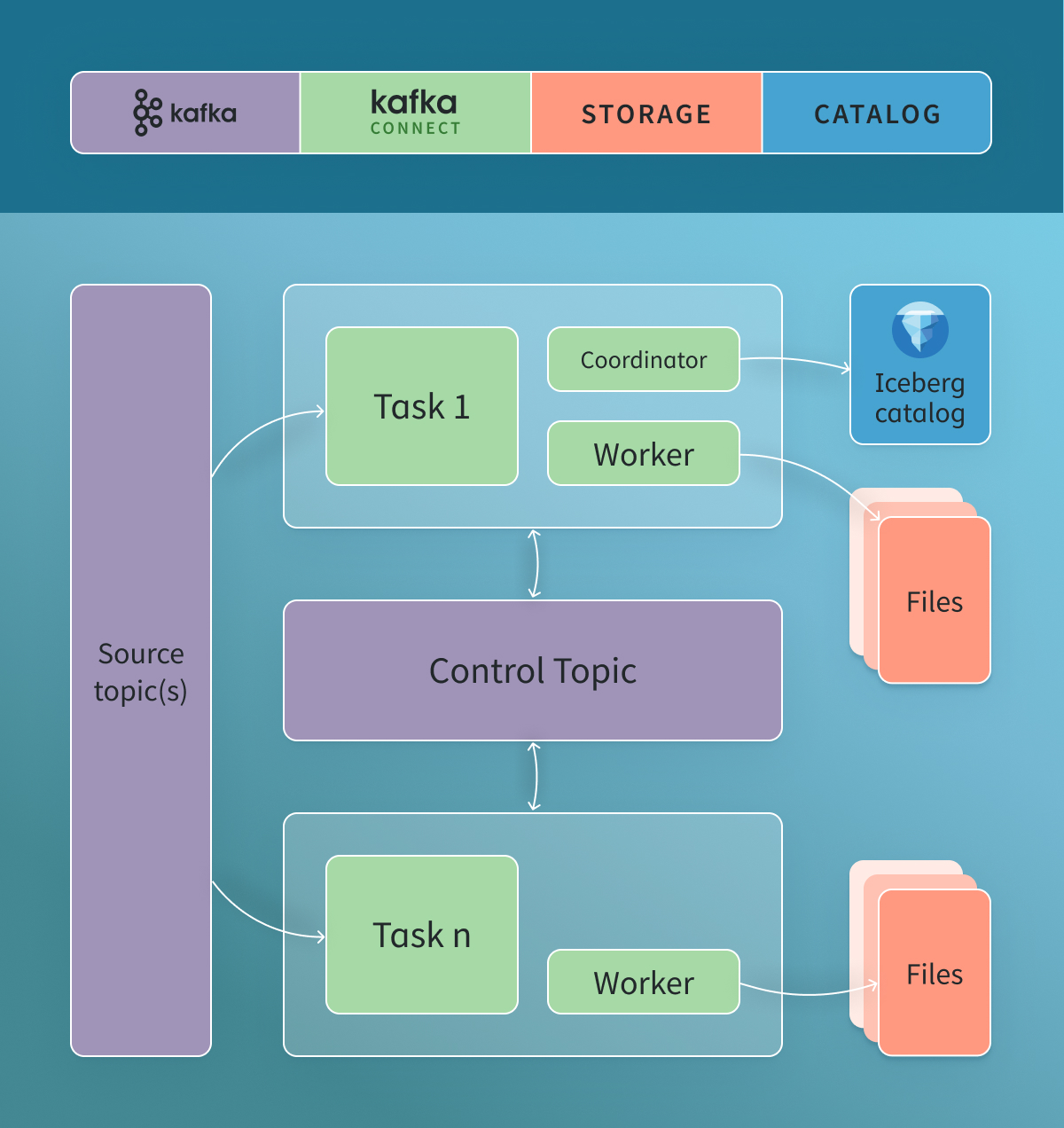

Architecture Overview¶
Kafka Connect Iceberg Sink | Iceberg Summit 2024
Let's see how it works
Coordinator¶
The Coordinator is the central command center that orchestrates commit operations across all distributed worker tasks in the Iceberg Kafka Connect Sink system. It acts like a conductor directing when and how data should be committed to Iceberg tables.
The Coordinator's primary responsibilities include:
- initiating commit cycles by broadcasting
StartCommitevents - collecting
DataWrittenandDataCompleteresponses from all Workers - executing the actual Iceberg table commits
- managing offset tracking to ensure exactly-once semantics
It maintains global commit state and coordinates the timing of all distributed operations.
The Coordinator runs co-located with one of the Worker nodes and contains no data processing logic. It performs only three coordination tasks: checking commit intervals, listening for coordination events, and monitoring timeouts.
Workers¶
Workers are the distributed data processing engines that handle the actual ingestion of Kafka records and transform them into Iceberg-compatible data files. Each Worker operates independently on its assigned topic partitions while coordinating with the central Coordinator.
Workers' main responsibilities include
- consuming and buffering Kafka records through their
SinkWritercomponent - listening for
StartCommitsignals from the Coordinator - completing write operations when instructed
- reporting back with
DataWrittenandDataCompleteevents.
They bridge Kafka's streaming model with Iceberg's batch-oriented storage format.
Workers use a composition pattern with SinkWriter components, where the SinkWriter handles pure data processing (record routing, file writing, offset tracking) while the Worker manages coordination aspects (control topic communication, event handling). Each Worker can handle multiple topic partitions simultaneously, enabling horizontal scalability.
Control Topic¶
The Control Topic is the communication backbone that enables coordination between the Coordinator and all Workers in the distributed system. It functions as a dedicated Kafka topic that carries all coordination events and ensures reliable message delivery between components.
The Control Topic's responsibilities include
- carrying five types of coordination events (
StartCommit,DataWritten,DataComplete,CommitToTable,CommitComplete) - maintaining event ordering through Producer ID-based partitioning
- providing persistent audit trails for system recovery.
It implements a broadcast pattern where all participants listen to the same topic but process only relevant events. It also employs a Producer ID-based partitioning strategy. This partitioning strategy ensures that events from the same component (Coordinator or Worker) are assigned to the same partition, maintaining event ordering. For the coordination process, this ordering guarantee is crucial as it ensures that events sent by each component won't become out of order due to network delays or partition reassignments.
The topic uses different consumer group strategies - persistent groups for the Coordinator and transient UUID-based groups for Workers. All interactions use Kafka's transactional operations to maintain exactly-once semantics, with Avro serialization ensuring cross-version compatibility and efficient transmission.
How Commit Coordination Works¶
Launching¶
System initialization begins by performing leadership election, checking if the current worker has the first topic partition (lexicographically ordered). If elected leader, it creates a Coordinator instance that runs in a dedicated thread with no direct interaction with the co-located Worker on the same node. Worker initialization happens lazily during the first save() call, creating a SinkWriter for data writing and instantiating a Worker instance.
The Coordinator and Worker establish their communication infrastructure by connecting to the control topic for coordination messages, setting up transactional producers with specific transaction IDs for exactly-once semantics, subscribing to the control topic with appropriate consumer groups, and performing an initial poll to initialize consumer group coordination.
Before Commit¶
The Coordinator maintains commit state by tracking elapsed time since the last commit and monitoring whether the configured commit interval has been reached. It buffers incoming responses, storing data file information from workers and completion signals indicating workers have finished processing their assigned partitions.
The Coordinator runs continuously in its dedicated thread, checking if the commit interval is reached and generating a new UUID to send StartCommit events when ready. It polls the control topic every second to receive worker responses and monitors for commit timeouts that would trigger partial commits.
Workers accumulate records in their SinkWriter during this phase without immediate processing.
Committing¶
The commit phase begins when the Coordinator broadcasts a StartCommit event to the control topic with a new commit UUID. Each Worker handles this by calling their SinkWriter to finalize accumulated data, creating partition offset assignments for all assigned partitions (including empty ones), and sending DataWritten events (one per table) containing data/delete files plus a single DataComplete event with all partition assignments.
The Coordinator processes incoming worker responses by collecting data file information and completion signals. When all expected partitions have responded, it triggers the actual commit process which groups data files by table and executes parallel table commits across multiple threads.
For each table, the Coordinator loads the table from the catalog, filters files based on previously committed offsets to avoid duplicates, deduplicates files by location, and chooses between append-only operations (for data-only scenarios) or row delta operations (when both data and delete files are present). It sets crucial snapshot properties including commit ID, control topic offsets in JSON format, and valid-through timestamp. All operations use transactional guarantees, sending records and committing offsets atomically.
After each table commit succeeds, the Coordinator sends a CommitToTable event containing the commit ID, table reference, snapshot ID of the newly created snapshot, and valid-through timestamp. This event serves as a notification that the specific table has been successfully committed with its new snapshot.
After Commit¶
Upon successful table commits, the Coordinator commits its control topic offsets, clears the accumulated commit state, and sends a CommitComplete event with the commit ID and valid-through timestamp. This notification informs all participants that the commit cycle completed successfully.
The Coordinator performs state reset by clearing completion signals, resetting the current commit ID, and preparing for the next commit cycle. The system includes robust error handling where the Coordinator catches all exceptions during commits, logs warnings, and continues to the next cycle while always ensuring state cleanup. For timeout scenarios, partial commits are executed with a null valid-through timestamp to indicate degraded consistency guarantees while maintaining system operation.
sequenceDiagram
participant ST as Source Topic
participant W1 as Worker 1<br/>(Node 1)
participant W2 as Worker 2<br/>(Node 2)
participant CT as Control Topic<br/>(Kafka Cluster)
participant C as Coordinator<br/>(Node 2)
participant T1 as Iceberg Table 1
participant T2 as Iceberg Table 2
Note over ST,T2: Data Ingestion Phase
rect rgb(245, 245, 245)
ST->>W1: SinkRecords (batch)
ST->>W2: SinkRecords (batch)
W1->>W1: Buffer records in SinkWriter
W2->>W2: Buffer records in SinkWriter
end
Note over ST,T2: Commit Coordination Phase
rect rgb(245, 245, 245)
C->>C: Check commit interval reached
C->>CT: StartCommit event (UUID)
CT->>W1: StartCommit event
CT->>W2: StartCommit event
end
Note over ST,T2: Worker Processing Phase
rect rgb(245, 245, 245)
W1->>W1: sinkWriter.completeWrite()
W2->>W2: sinkWriter.completeWrite()
W1->>CT: DataWritten event (Table 1)
W1->>CT: DataWritten event (Table 2)
W1->>CT: DataComplete event (all partitions)
W2->>CT: DataWritten event (Table 1)
W2->>CT: DataComplete event (all partitions)
CT->>C: DataWritten events (all tables)
CT->>C: DataComplete events (all workers)
end
Note over ST,T2: Table Commit Phase
rect rgb(245, 245, 245)
C->>C: Group files by table, parallel commit
C->>T1: Commit data files (AppendFiles/RowDelta)
C->>T2: Commit data files (AppendFiles/RowDelta)
C->>CT: CommitToTable event (Table 1, snapshot ID)
C->>CT: CommitToTable event (Table 2, snapshot ID)
end
Note over ST,T2: Commit Completion Phase
rect rgb(245, 245, 245)
C->>C: Commit control topic offsets
C->>CT: CommitComplete event (commit ID, valid-through timestamp)
CT->>W1: CommitComplete event
CT->>W2: CommitComplete event
C->>C: Reset commit state for next cycle
endWriting Data Behind the Scenes¶
The data writing journey begins when Workers receive batches of Kafka Connect SinkRecords from their assigned topic partitions. Each Worker immediately forwards these records to its SinkWriter component, which serves as the main orchestrator for transforming streaming Kafka data into Iceberg table files. The SinkWriter maintains a map of table names to RecordWriter instances and tracks source offsets for position management, setting up the foundation for the sophisticated data processing pipeline that follows.
Multi-Table Routing¶
Upon receiving records, the SinkWriter first determines which Iceberg tables should receive each record through its routing mechanism. The system supports both static and dynamic routing strategies to handle diverse data flow requirements.
Static routing operates through the routeRecordStatically() method, which has two modes: when no route field is configured, it distributes each record to all configured tables in the connector settings. When a route field is specified, the system extracts the field value from each record and applies regex pattern matching against each configured table's regex pattern. Only tables whose patterns successfully match the route field value receive the record, enabling content-based selective routing.
Dynamic routing uses the routeRecordDynamically() method, which extracts the route field value from each record and converts it to lowercase to use directly as the table name. This approach enables the system to create and write to tables dynamically based on actual data content, supporting use cases like multi-tenant applications where table names are determined by tenant identifiers embedded in the data.
Auto-Table Creation¶
When dynamic routing identifies a table that doesn't exist, or when static routing encounters missing tables with auto-creation enabled, the IcebergWriterFactory automatically creates the necessary Iceberg infrastructure through its createWriter() method. The factory first attempts to load the table from the catalog, and if it fails with a NoSuchTableException, it proceeds with auto-creation.
The auto-creation process involves inferring the appropriate schema from sample records using type inference algorithms, creating partition specifications based on connector configuration, and establishing namespaces if they don't already exist.
The factory handles race conditions gracefully through retry logic with exponential backoff, ensuring that multiple workers can operate concurrently without conflicts when attempting to create the same tables simultaneously. When a table cannot be found and auto-creation is disabled, the factory returns a NoOpWriter that silently discards records, allowing the system to continue operating without interruption.
Type Conversion and Schema Evolution¶
As records flow to their designated tables, the RecordConverter performs comprehensive type mapping from Kafka Connect types to Iceberg types, handling primitives, complex nested structures like structs and maps, temporal data types, and specialized types such as UUIDs and decimals.
Schema evolution is implemented in the IcebergWriter.convertToRow() method through a sophisticated monitoring system. When schema evolution is enabled, the system uses a SchemaUpdate.Consumer to track changes during record conversion. If the consumer detects changes (when updates.empty() returns false), the writer immediately flushes the current file via the flush() method, applies schema updates using SchemaUtils.applySchemaUpdates(), reinitializes the writer with the new schema through initNewWriter(), and reconverts the record using the updated schema. This ensures that schema changes are applied atomically without corrupting existing files, while maintaining backward compatibility and data integrity throughout the evolution process.
Multi-Table Writing¶
The system achieves multi-table writing through the SinkWriter's coordination of multiple RecordWriter instances. Each table receives its own dedicated writer instance, either an IcebergWriter for valid tables or a NoOpWriter for missing tables when auto-creation is disabled. The SinkWriter maintains a map of table names to RecordWriter instances, allowing it to route each record to the appropriate writers based on the routing logic.
When processing records, the system creates separate IcebergWriterResult objects for each table, containing metadata about the data files, delete files, and partition information specific to that table. This design enables true multi-table parallelism, where different tables can have different schemas, partition strategies, and file formats while sharing the same data stream.
Partitioned Writing¶
The writing process adapts to both partitioned and unpartitioned table configurations. For partitioned tables, the PartitionedAppendWriter determines the appropriate partition key for each record and routes it to the correct partition-specific writer, supporting various partition transforms including temporal partitioning by year, month, day, or hour, as well as bucket and truncate transforms for hash-based and range-based partitioning. Each partition maintains its own writer instance, allowing for efficient parallel writing while ensuring that records land in their correct partition locations within the table structure.
File Completion and Result Collection¶
When the commit cycle begins and completeWrite() is called, the SinkWriter coordinates the finalization of all accumulated data. It calls complete() on all active writers to flush remaining data to storage, collects metadata from all generated data files and delete files, captures the final Kafka offset positions for each processed partition, and returns a comprehensive SinkWriterResult containing both the file metadata and offset tracking information. This completes the transformation from streaming Kafka records to batch-oriented Iceberg files, with all the necessary metadata prepared for the distributed commit coordination process that follows.
The SinkWriterResult serves as the bridge between data writing and coordination, containing a list of IcebergWriterResult objects (one per table) and a map of source offsets for each processed topic partition. Each IcebergWriterResult includes the table identifier, lists of data files and delete files generated during writing, and the partition type specification from the target table.
DataWritten and DataComplete Event Generation: When the Worker receives a StartCommit event, it triggers sinkWriter.completeWrite() and then generates coordination events from the results. For each IcebergWriterResult in the SinkWriterResult, the Worker sends a separate DataWritten event containing the commit ID, table reference, and file metadata (data files and delete files). After sending all table-specific DataWritten events, the Worker sends a single DataComplete event that includes the commit ID and TopicPartitionOffset assignments for all assigned partitions, signaling to the Coordinator that this Worker has finished processing all its data for the current commit cycle.
