How to Use MkDocs to Integrate GitHub Actions and Git Submodule for Cross-repo Documentation

TLDR

After reading this article, you will learn how to:

• Use Git Submodule to centrally manage documentation sources across multiple projects
• Configure GitHub Actions for cross-project automation and integration workflows
• Utilize Reusable Workflows to reuse CI/CD scripts and reduce maintenance costs
• Leverage MkDocs Monorepo Plugin to merge documentation from multiple projects into a single website

Ever tried hunting for that one crucial piece of documentation across five different repositories? It's like playing an exhausting game of hide-and-seek where the information you need is always in the other repo. Sound familiar?

In many organizations, teams scatter their documentation across separate Git repositories like breadcrumbs in a forest. Frontend docs live here, backend knowledge sits there, and that critical ML pipeline explanation? Somewhere in yet another repository. While this approach keeps ownership clear and projects manageable, it creates a documentation nightmare that would make even the most patient developer pull their hair out.

Picture this: a new team member joins your organization. Instead of a smooth onboarding experience, they embark on a treasure hunt across repositories, asking colleagues endless questions and trying to piece together how everything connects. It's like trying to assemble IKEA furniture with instructions scattered across different boxes – technically possible, but unnecessarily frustrating.

I've been there too. While switching to a monorepo seemed tempting (like moving all your furniture to one room), we decided to keep our multi-repo structure for good reasons – authorization boundaries, deployment flexibility, and version independence. But I wasn't about to let scattered documentation continue being the thorn in our side.

That's when I discovered the perfect recipe: combining Git Submodules (think of them as neat organizational folders), MkDocs Monorepo Plugin (the master chef that brings everything together), and GitHub Actions (your tireless automation assistant). The result? A centralized documentation platform that updates itself automatically. It's like having a personal librarian who keeps all your books organized and up-to-date!

Specifically, this setup involves three repositories:

• monorepo (Main Repo) is the repository I use to build my personal website, utilizing MkDocs and deployed on GitHub Pages. It already has a predefined publish-docs.yml GitHub Actions Workflow.
• data2ml-ops (Sub Repo) is my personal project for practicing DataOps and MLOps, which also uses MkDocs for documentation building.
• reusable-workflows is used to store reusable workflows.

My mission? Merge the learning notes from data2ml-ops into monorepo so I can showcase insights from different projects on one beautiful website. No more jumping between sites or wondering if documentation is outdated!

The magic happens like this: whenever data2ml-ops gets updated documentation and pushes to GitHub, it automatically triggers the documentation build and deployment in monorepo. It's like having a loyal assistant who immediately updates your main presentation whenever you make changes to your notes. No more worrying about documentation drift!

This article will explain step by step how I completed this integration, including implementation methods and considerations.

1. Add Submodule
   Add data2ml-ops as a Git Submodule in monorepo.

2. Create Documentation Deployment Workflow
   Add a GitHub Actions Workflow in monorepo responsible for building and deploying documentation to GitHub Pages.

3. Create Reusable Workflow
   Create a Reusable Workflow in reusable-workflows responsible for triggering the documentation deployment process from step 2.

4. Configure Sub-repo Workflow
   Create a Workflow in data2ml-ops that uses the Reusable Workflow from step 3 to trigger the documentation deployment process in monorepo.

5. Integrate MkDocs Monorepo Plugin
   Add the MkDocs Monorepo Plugin to monorepo to integrate multiple documentation sources.

6. Testing and Verification
   Submit new changes, test whether the overall process works properly, and check if documentation is successfully deployed.

1. Add Submodule

kuanchoulai10/monorepo

Think of Git Submodules as your project's way of having roommates – you can live together in the same house (repository) while keeping your personal belongings (version history) completely separate¹. It's perfect for these scenarios:

1. Modular management: Like having separate apartments for your frontend and backend teams, but with a shared lobby where they can meet and collaborate.
2. Version independence: Your main repository acts like a strict landlord, locking onto specific versions of submodules. No surprise changes allowed!
3. Reusability: That awesome utility library? Instead of copying it everywhere like a hoarder, just reference it as a submodule. Clean and efficient!

Let's invite data2ml-ops to move into our monorepo using the digital equivalent of a lease agreement:

git submodule add https://github.com/kuanchoulai10/data2ml-ops.git data2ml-ops

Cloning into '/Users/kcl/projects/monorepo/data2ml-ops'...
remote: Enumerating objects: 197, done.
remote: Counting objects: 100% (197/197), done.
remote: Compressing objects: 100% (110/110), done.
remote: Total 197 (delta 78), reused 183 (delta 66), pack-reused 0 (from 0)
Receiving objects: 100% (197/197), 1.04 MiB | 1.94 MiB/s, done.
Resolving deltas: 100% (78/78), done.

git status

On branch main
Your branch is up to date with 'origin/main'.

Changes to be committed:
  (use "git restore --staged <file>..." to unstage)
    modified:   .gitmodules
    new file:   data2ml-ops

Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
  (use "git restore <file>..." to discard changes in working directory)

Perfect! Git has thoughtfully created two essential files:

1. .gitmodules – Think of this as your address book, telling Git where to find each submodule:

   [submodule "data2ml-ops"]
     path = data2ml-ops
     url = https://github.com/kuanchoulai10/data2ml-ops.git


2. data2ml-ops – This is like a bookmark that points to exactly which version (commit) of the submodule we're using.

Time to share our changes with the world! Commit and push these files to the remote repository:

git commit -m "Add data2ml-ops as submodule"

git push

Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 8 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 404 bytes | 404.00 KiB/s, done.
Total 3 (delta 2), reused 0 (delta 0), pack-reused 0
remote: Resolving deltas: 100% (2/2), completed with 2 local objects.
To https://github.com/kuanchoulai10/monorepo.git
   6c36b76..c1e29ff  main -> main

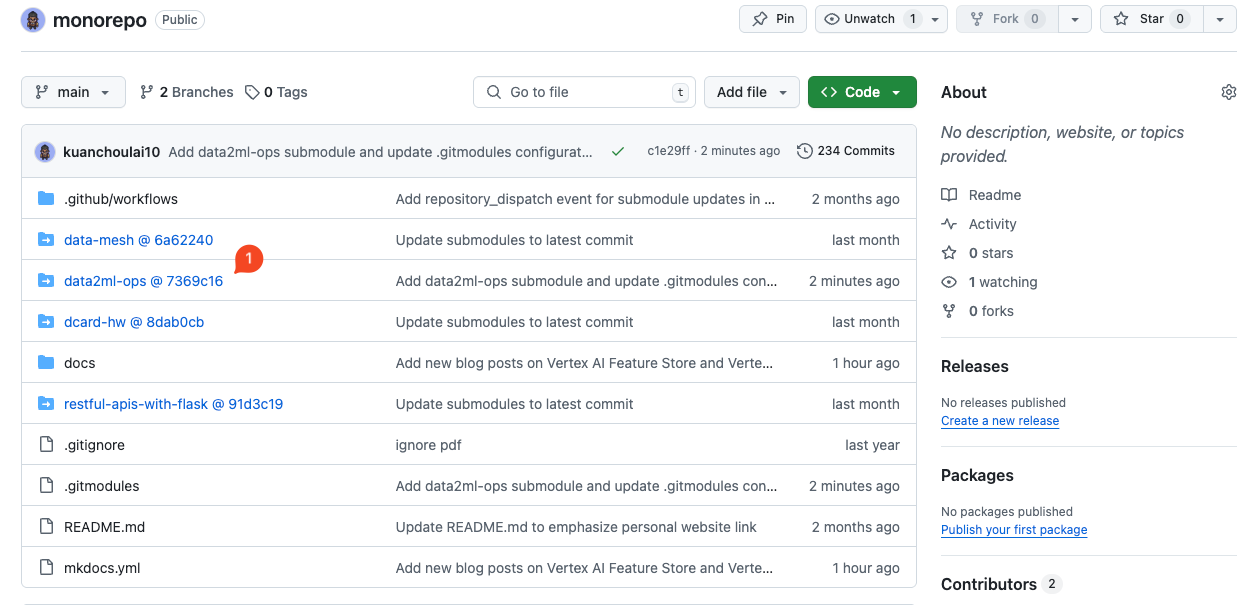

Now when you visit GitHub, you'll see something magical: data2ml-ops @ 7369c16. Click on it, and voilà! It teleports you to the actual repository. It's like having a portal in your house that leads directly to your friend's place – the reference is there, but you're not actually storing their stuff in your garage.

2. Create Documentation Deployment Workflow

kuanchoulai10/monorepo

Time to set up our documentation deployment pipeline! Think of GitHub Actions as your personal automation butler – and the best part? It works for free on public repositories².

In the GitHub Actions universe, events are like doorbells that wake up your butler. Whether someone rings the Push doorbell, the Pull Request chime, or the Merge bell, each one triggers a workflow – basically a to-do list of automated tasks your butler follows religiously³.

I won't bore you with every detail of writing deployment workflows (that's a whole other adventure), but let's focus on the Git submodules magic tricks.

Our workflow has two ears, always listening for:

1. New pushes to monorepo – When the main house gets updates, rebuild everything!
2. Special repository_dispatch webhook events – Think of these as secret knock patterns that external repositories can use to wake up our workflow⁴⁵. When other submodule repos update their docs, they'll send this special signal saying "Hey, time to rebuild!"

on:
  push:
    branches:
      - main
  repository_dispatch:
    types: [update-submodules]

Our workflow is like a well-organized recipe with one main job. The first step? Always get all the ingredients (checkout the codebase). But here's the crucial part – when using actions/checkout@v4, you absolutely must add submodules: recursive. Without this magical incantation, your submodule folders would be as empty as a diet soda's promise of satisfaction!

      - uses: actions/checkout@v4
        with:
          fetch-depth: 0
          submodules: recursive

Since our workflow might be awakened by updates from submodule repositories (like a helpful neighbor calling to say they've cleaned their yard), we need to be polite guests and:

1. Update all submodules – Fetch the latest changes from our submodule neighbors
2. Commit and push changes – If we found updates, we'll neatly file them away in our main repository

      - name: Update Submodules
        run: |
          git submodule update --remote --merge
      - name: Commit and Push Submodule Updates
        run: |
          git add .
          if ! git diff --cached --quiet; then
              git commit -m "Update submodules to latest commit"
              git push origin main
          else
              echo "No changes to commit"
          fi

This creates a beautiful synchronization dance – whenever a submodule updates, our documentation stays fresh and current. Don't forget to commit and push these changes when you're done!

3. Create Reusable Workflow

kuanchoulai10/reusable-workflows

Time to create our universal remote control! This reusable workflow is like that friend who's really good at getting everyone organized for group projects – simple, reliable, and saves everyone time.

The logic is beautifully straightforward: use curl (the Swiss Army knife of web requests) to send a gentle tap on monorepo's shoulder via the repository_dispatch webhook⁵. It's like sending a text message that says "Hey, I updated my docs, could you refresh the website please?" The message includes event_type: update-submodules so our main repo knows exactly what kind of help we need.

Since this is a reusable workflow (the automation equivalent of a recipe you can share with friends), it listens for workflow_call events⁶:

name: Trigger Monorepo to Build Docs

on:
  workflow_call:
    secrets:
      PAT:
        required: true
        description: 'Personal Access Token with repo scope'

jobs:
  trigger_monorepo:
    runs-on: ubuntu-latest
    steps:
      - name: Trigger update-submodule workflow
        run: |
          curl -L \
            -X POST \
            -H "Accept: application/vnd.github+json" \
            -H "Authorization: Bearer ${{ secrets.PAT }}" \
            -H "X-GitHub-Api-Version: 2022-11-28" \
            https://api.github.com/repos/kuanchoulai10/monorepo/dispatches \
            -d '{"event_type":"update-submodules"}'

Why go through the trouble of creating reusable workflows? Imagine updating your automation process and having to visit each repository individually to make changes – it's like manually updating your address on every account when you move. With reusable workflows, you update once and everyone benefits. Smart and efficient!

Remember to commit and push when you're done setting up this automation masterpiece.

4. Configure Sub-repo Workflow

kuanchoulai10/data2ml-ops

Now comes the exciting part – teaching our sub-repository how to use that universal remote we just created! But first, we need to create a special key (Personal Access Token) that gives our automation the right permissions.

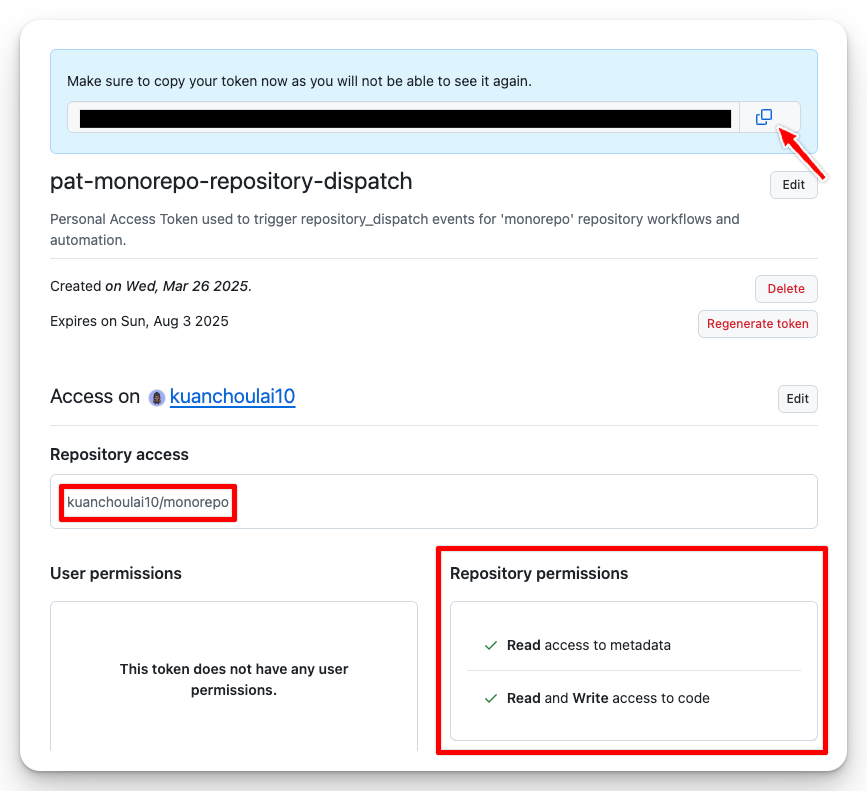

Head over to GitHub's top-right corner: click your profile picture > Settings > Developer Settings > Personal access tokens > Fine-grained tokens. Think of this token as a VIP pass that allows reading metadata from the monorepo and pushing code with new submodule commits. Make sure to grant "Contents" repository permissions (write)⁵ – it's like giving your automation assistant the keys to the filing cabinet.

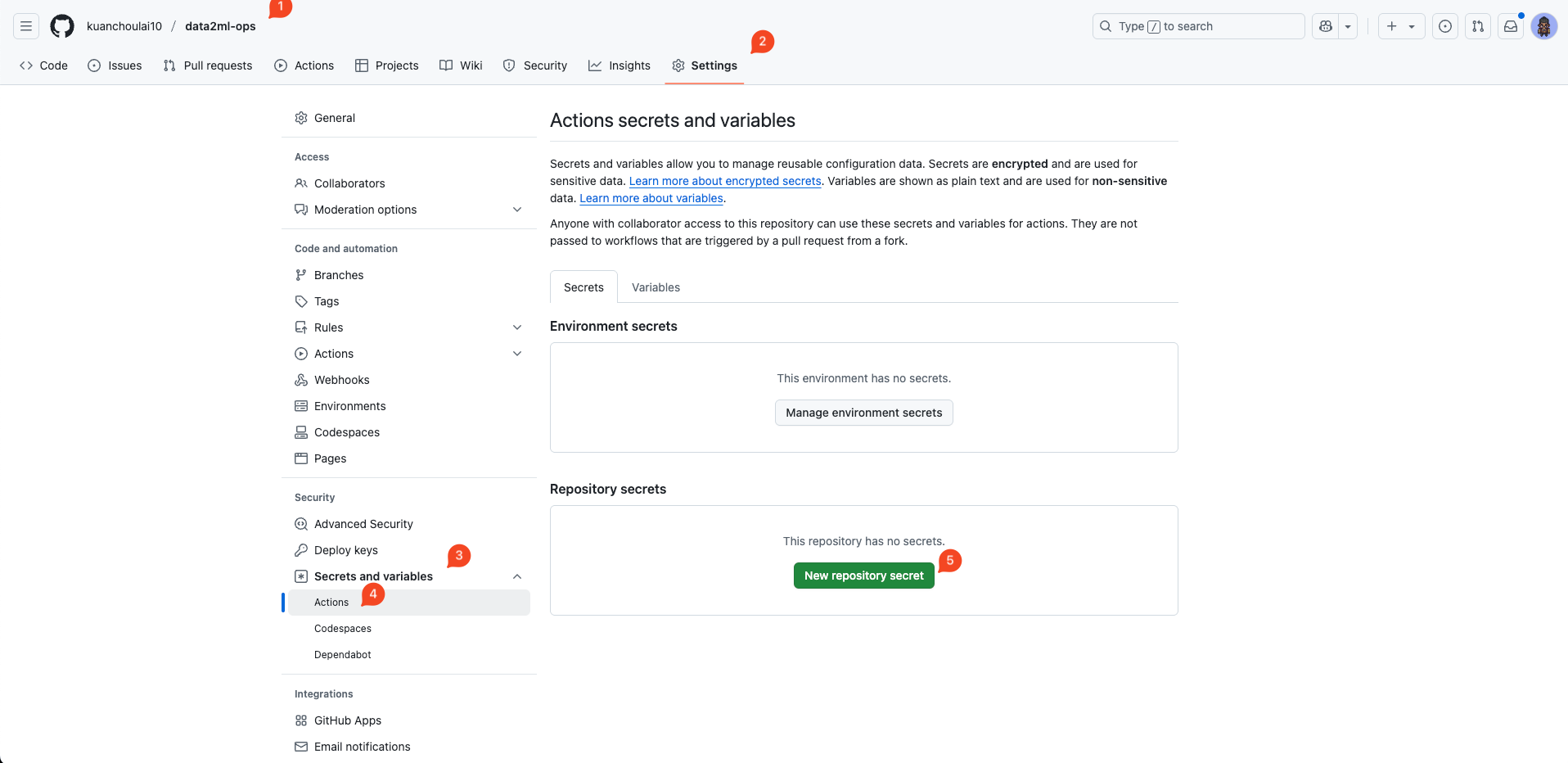

Once you've created your token (and copied it – this is important!), head back to data2ml-ops and create a repository secret called PAT. Paste your token there like you're hiding a spare key under a digital doormat.

Now for the grand finale – creating the workflow that calls our reusable workflow⁸. It's surprisingly simple, like speed-dialing a friend. Just use uses in your job and point it to where your reusable workflow lives:

name: Trigger Monorepo to Build Docs

on:
  push:
    paths:
      - 'mkdocs.yml'
      - 'README.md'
      - 'docs/**'

jobs:
  trigger_monorepo:
    uses: kuanchoulai10/reusable-workflows/.github/workflows/trigger-monorepo-to-build-doc.yml@main
    secrets:
      PAT: ${{ secrets.PAT }}

Commit and push these changes, and you've just created your first cross-repository communication channel!

5. Integrate MkDocs Monorepo Plugin

kuanchoulai10/monorepo

Almost there! Time to add the secret sauce that makes multiple documentation sources sing in harmony. Enter mkdocs-monorepo-plugin – the conductor of our documentation orchestra, crafted by the brilliant minds at Backstage.

Quick backstory: Backstage is Spotify's gift to the developer world (it joined CNCF in 2020). Think of it as the ultimate dashboard for your engineering organization – like a mission control center where you can see all your microservices, documentation, CI/CD pipelines, and APIs in one beautiful, organized view⁹.

First, let's invite this plugin to the party:

pip install mkdocs-monorepo-plugin

Once installed, the magic happens with just a few lines. Add monorepo to your plugins, and suddenly you have access to a powerful new syntax: !include. It's like having a magic wand that can summon documentation from other repositories:

...

nav:
  - Data2ML Ops: "!include ./data2ml-ops/mkdocs.yml"

...

plugins:
  - monorepo

This elegant little configuration tells MkDocs: "Hey, go grab the navigation structure from that submodule and weave it seamlessly into our main site." It's documentation magic at its finest!

Don't forget to commit and push these changes – we're almost ready for the big reveal!

6. Testing and Verification

kuanchoulai10/data2ml-ops

The moment of truth has arrived! Time to put our automation masterpiece to the test. Let's make some updates to the documentation in data2ml-ops and push them to GitHub, then sit back and watch our creation come to life.

Check out the GitHub Actions workflow doing its thing:

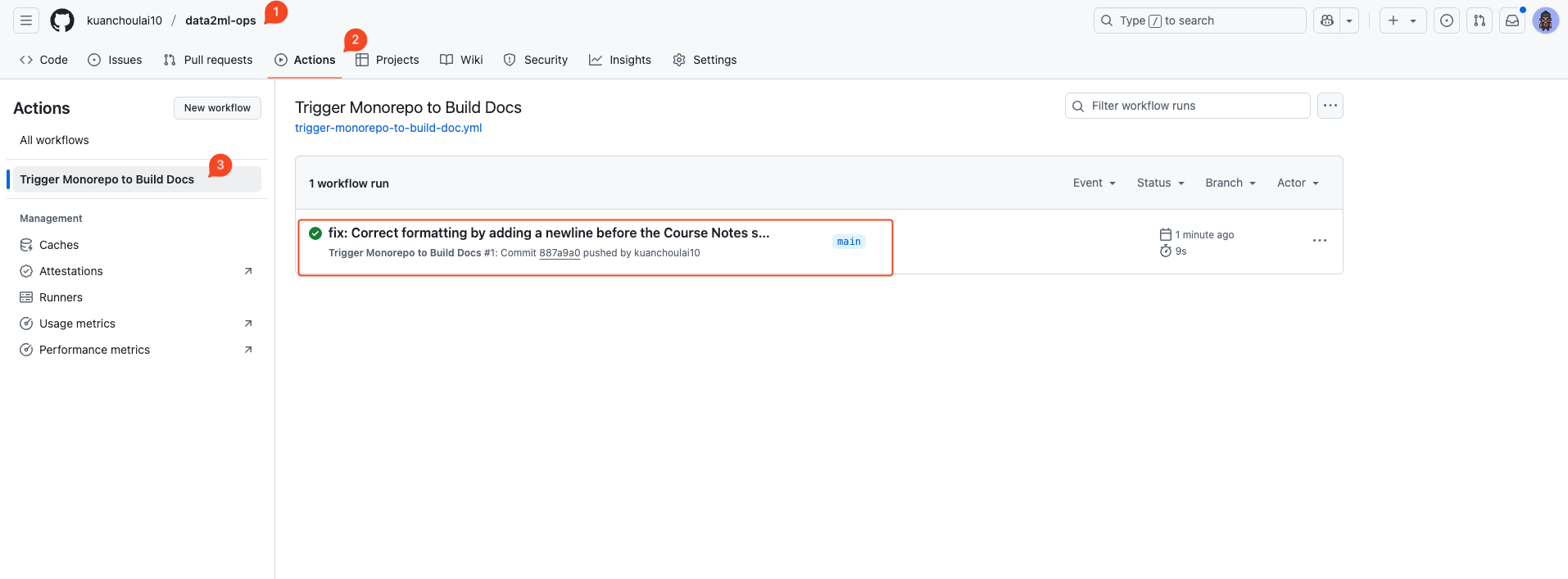

data2ml-ops run history

Behind the scenes, our workflow is using that reusable workflow like a well-oiled machine. It sends a polite curl request to the GitHub API, creating a repository_dispatch event in monorepo. This digital tap on the shoulder then wakes up the publish-docs.yml workflow – it's like watching a perfectly choreographed dance!

Switch over to the monorepo page, and you'll see our documentation deployment process has indeed sprung into action:

monorepo run history

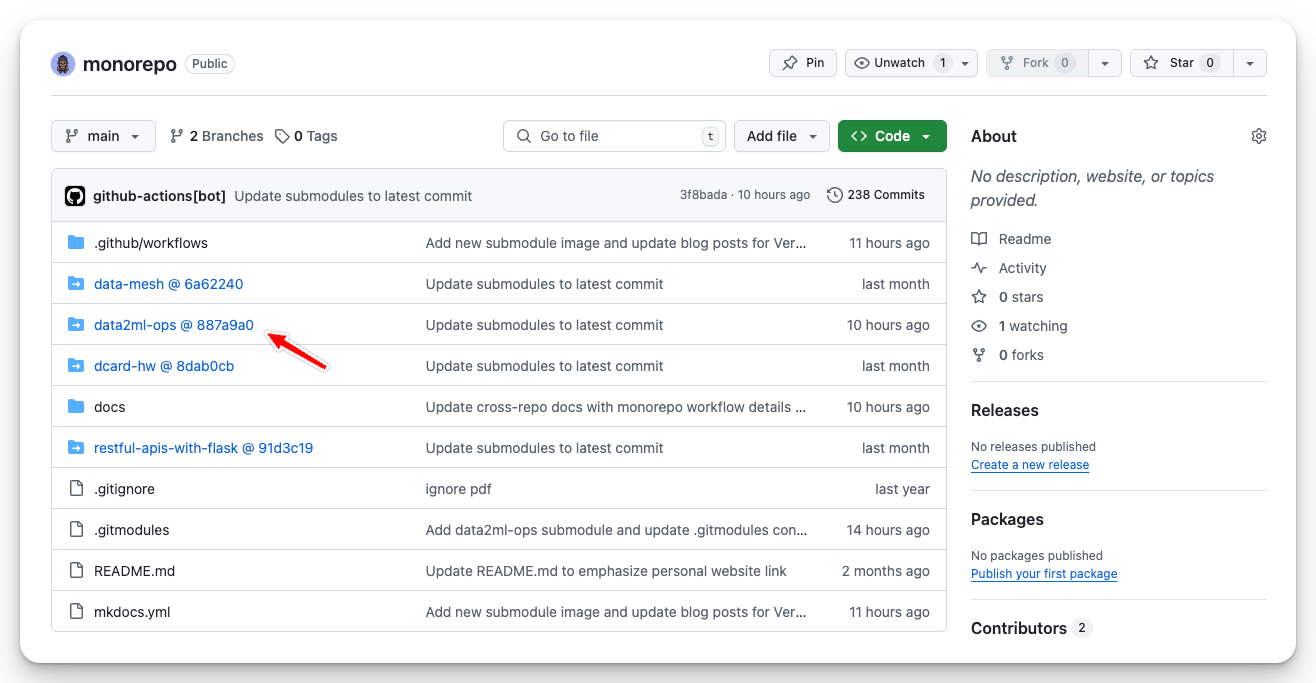

Look at that beautiful update! Our submodule reference has smoothly transitioned from data2ml-ops @ 7369c16 to data2ml-ops @ 887a9a0. It's like watching your bookmark automatically update to point to the latest chapter of your favorite book.

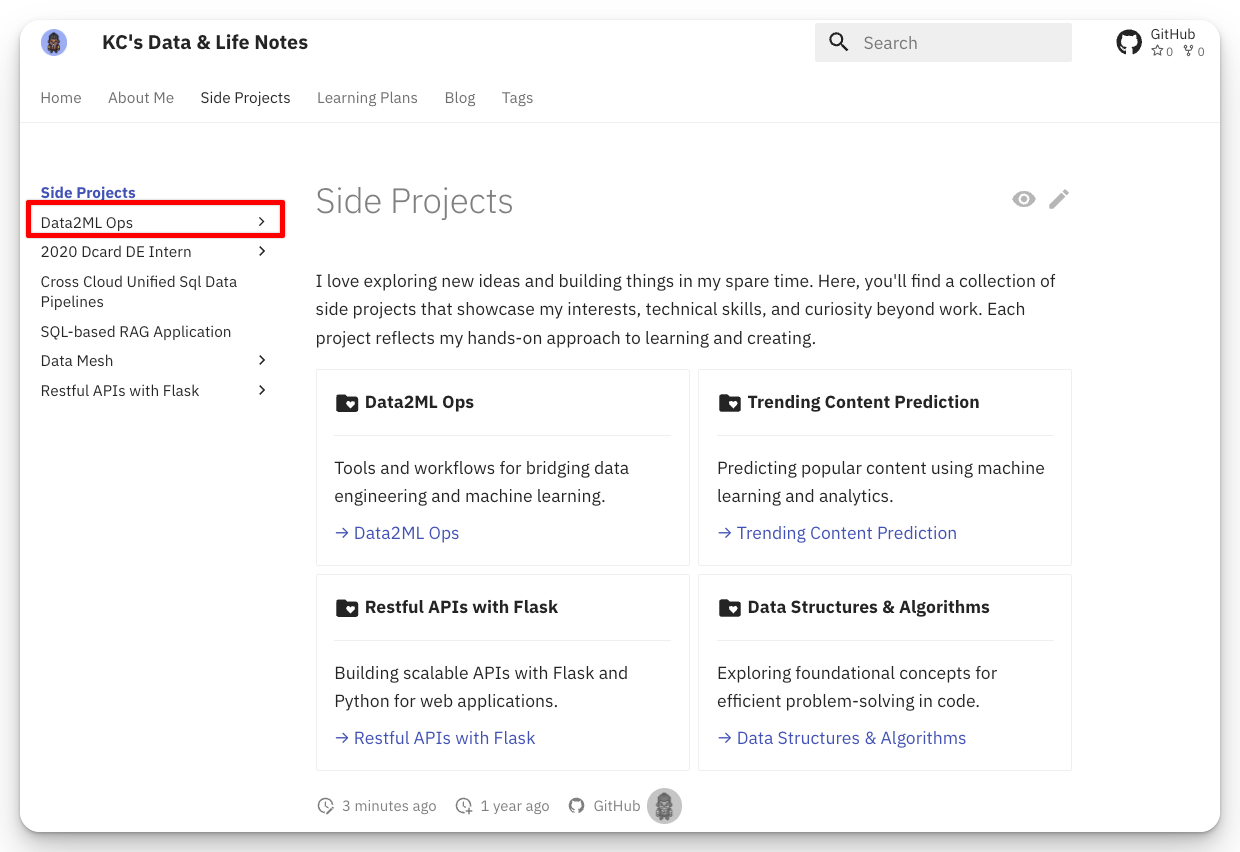

The final proof? Visit the actual website, and there it is – the documentation from my data2ml-ops project, freshly deployed and beautifully integrated! It's like watching all the pieces of a puzzle click into place.

And just like that, we've created a self-updating documentation ecosystem that keeps everything in sync without manual intervention. No more documentation archaeology expeditions or wondering if what you're reading is current. Your cross-repository documentation now flows as smoothly as a well-conducted symphony!

References

---

1. Git Submodules Basic Explanation | gitaarik GitHub ↩

2. About billing for GitHub Actions | GitHub Docs ↩

3. The components of GitHub Actions | GitHub Docs ↩

4. repository_dispatch Event | GitHub Docs ↩

5. Create a repository dispatch event | GitHub Docs ↩↩↩

6. Creating a reusable workflow | GitHub Docs ↩

7. Creating a fine-grained personal access token | GitHub Docs ↩

8. Calling a reusable workflow | GitHub Docs ↩

9. backstage/mkdocs-monorepo-plugin | GitHub ↩
