Trino Cluster Deployment¶

Prerequisites

Complete all the requirements in the Prerequisites section.
OAuth 2.0 Client ID and Client Secret (OAUTH2_CLIENT_ID and OAUTH2_CLIENT_SECRET) for Google authentication. See here for instructions.
GCP service account path in your local machine (GCP_SA_INPUT_PATH) for accessing BigQuery Datasets under your GCP project (GCP_PROJECT_ID). See here for instructions.
AWS credentials (AWS_ACCESS_KEY and AWS_SECRET_KEY), regions (AWS_REGION), and S3 bucket (ICEBERG_S3_URL) for accessing Iceberg table and Glue Data Catalog. See here for instructions.
AWS S3 Bucket for Exchange Manager (EXCHANGE_S3_URLS). See here for instructions.

Without further ado, let's get started with the deployment:

cd ~/Projects/retail-lakehouse/trino
bash install.sh

The installation script install.sh will perform the following steps:

Generate .env and values.yaml files
Create the trino namespace.
Generate TLS certificates and create the Kubernetes secret.
Generate the BigQuery service account secret and create the Kubernetes secret.
Install Trino using Helm with the generated values.yaml.

install.sh

#!/bin/bash

set -euo pipefail

# 產生 .env 和 values.yaml 檔案
bash generate-env.sh


# 載入 .env 當作環境變數
set -a
# shellcheck disable=SC1090
source ".env"
set +a

kubectl create namespace trino || true

bash generate-tls-certs.sh
kubectl apply -f ./trino-tls-secret.yaml -n trino

echo "Generating Kubernetes secret for Accessing BigQuery..."
kubectl create secret generic trino-bigquery-secret \
    --from-file=trino-sa.json="$GCP_SA_INPUT_PATH" \
    --dry-run=client -o yaml > "./trino-bigquery-secret.yaml"
echo "trino-bigquery-secret.yaml generated successfully."
kubectl apply -f ./trino-bigquery-secret.yaml -n trino

helm repo add trino https://trinodb.github.io/charts/
helm repo update
helm install trino trino/trino \
  -f values.yaml \
  -n trino \
  --version 1.39.1 \

For the script to work correctly, you need to set the following environment variables during the execution of the script. Another option is to set them in a .env file in the same directory as the script.

.env

INTERNAL_SHARED_SECRET: A secret string for internal communication security between Trino nodes. Used as internal-communication.shared-secret.
OAUTH2_CLIENT_ID: The client ID for OAuth 2.0 authentication, used to enable Google login for the Trino Web UI. Referenced as http-server.authentication.oauth2.client-id.
OAUTH2_CLIENT_SECRET: The client secret for OAuth 2.0 authentication, paired with the client ID for secure login. Used as http-server.authentication.oauth2.client-secret.
GCP_BQ_PROJECT_ID: The Google Cloud project ID, required for the BigQuery connector in Trino. Used as bigquery.project-id.
GCP_SA_INPUT_PATH: Path to the service account JSON file for Google Cloud authentication. Used to create the BigQuery service account K8S secret.
AWS_ACCESS_KEY: AWS access key for authenticating to AWS services (S3, Glue, etc.). Used for S3 and Glue access, and for exchange manager S3 configuration.
AWS_SECRET_KEY: AWS secret key, paired with the access key for AWS authentication. Used for S3, Glue, and exchange manager S3 configuration.
AWS_REGION: The AWS region where your S3 buckets and Glue Data Catalog are located. Used for S3, Glue, and exchange manager S3 configuration.
ICEBERG_S3_URL: The S3 URL (bucket path) for storing Iceberg table data. Used as hive.metastore.glue.default-warehouse-dir.
EXCHANGE_S3_URLS: S3 URLs for Trino's exchange manager, which handles intermediate data during distributed query execution. Used as exchangeManager.baseDir.

These variables are substituted into the Trino Helm values file and Kubernetes secrets using envsubst to configure authentication, storage, and cloud integration for your Trino deployment.

If you don't like my script and want to do it step by step manually, please continue reading. This article will walk you through how to deploy a Trino Cluster on Kubernetes step by step, explaining each part along the way.

Generating Environment and Values Files¶

install.sh:env

# 產生 .env 和 values.yaml 檔案
bash generate-env.sh

generate-env.sh

#!/bin/bash

set -euo pipefail

ENV_FILE=".env"

# 若有舊的 .env，就先載入當作預設值
if [[ -f "$ENV_FILE" ]]; then
  set -a
  # shellcheck disable=SC1090
  source "$ENV_FILE"
  set +a
fi

# 定義一個函式來詢問變數
ask() {
  local name="$1"
  local current="${!name-}"  # 取目前環境的值（若有）
  local prompt

  if [[ -n "${current:-}" ]]; then
    prompt="Enter $name (default: $current): "
  else
    prompt="Enter $name: "
  fi

  read -r -p "$prompt" input

  # 空輸入就沿用舊值；否則更新
  if [[ -z "${input:-}" && -n "${current:-}" ]]; then
    export "$name=$current"
  else
    export "$name=$input"
  fi
}

echo "Generating .env file..."
echo "=== Fill in variables to generate ENV_FILE ==="
# 清空並重新創建 .env 檔案
> "$ENV_FILE"
# 不需要使用者輸入的所有變數
INTERNAL_SHARED_SECRET="$(openssl rand 512 | base64)"
export INTERNAL_SHARED_SECRET
printf 'INTERNAL_SHARED_SECRET=%q\n' "$INTERNAL_SHARED_SECRET" >> "$ENV_FILE"
# 需要使用者輸入的所有變數（順序決定互動順序）
VARS=(
  OAUTH2_CLIENT_ID
  OAUTH2_CLIENT_SECRET
  GCP_BQ_PROJECT_ID
  GCP_SA_INPUT_PATH
  AWS_ACCESS_KEY
  AWS_SECRET_KEY
  AWS_REGION
  ICEBERG_S3_URL
  EXCHANGE_S3_URLS
)
for v in "${VARS[@]}"; do
  ask "$v"
  val="${!v-}"
  printf '%s=%q\n' "$v" "$val" >> "$ENV_FILE"
done
echo "$ENV_FILE generated successfully."

# 檢查 envsubst command 是否存在
if ! command -v envsubst >/dev/null 2>&1; then
  echo "Error: envsubst not found. Please install gettext." >&2
  exit 1
fi

echo "Generating values.yaml from values-template.yaml..."
envsubst < "values-template.yaml" > "values.yaml"
echo "values.yaml generated successfully."

Loading environment variables from the `.env` file¶

Load the environment variables from the .env file so that they can be used in subsequent commands:

source ".env"

Creating the Namespace¶

Create the trino namespace, which is where we deploy our Trino cluster:

kubectl create namespace trino

Result

namespace/trino created

Setting up TLS Certificates¶

Execute generate-tls-certs.sh to generate TLS certificate and Kubernetes secret and then apply the secret to the trino namespace:

install.sh:tls

bash generate-tls-certs.sh
kubectl apply -f ./trino-tls-secret.yaml -n trino

Result

Creating TLS certificates for Trino...
Step 1: Creating Private Key...
Step 1: Completed.
Step 2: Creating Certificate...
Step 2: Completed.
Step 3: Combining Private Key and Certificate...
Step 3: Completed.
Step 4: Creating Kubernetes secret...
Step 4: Completed.
Certificate generation completed successfully!

Generated files:
  - .cert/trino-dev.pem (with private key and certificate)
  - trino-tls-secret.yaml (Kubernetes secret manifest)

secret/trino-tls-secret created

Once executed, the trino-tls-secret.yaml file will have the following structure:

trino-tls-secret.yaml

apiVersion: v1
kind: Secret
metadata:
  creationTimestamp: null
  name: trino-tls-secret
data:
  trino-dev.pem: xxx

Configuring BigQuery Service Account¶

Generate the BigQuery service account secret manifest file and apply it to the trino namespace:

install.sh:bq

echo "Generating Kubernetes secret for Accessing BigQuery..."
kubectl create secret generic trino-bigquery-secret \
    --from-file=trino-sa.json="$GCP_SA_INPUT_PATH" \
    --dry-run=client -o yaml > "./trino-bigquery-secret.yaml"
echo "trino-bigquery-secret.yaml generated successfully."
kubectl apply -f ./trino-bigquery-secret.yaml -n trino

Result

Generating Kubernetes secret for Accessing BigQuery...
trino-bigquery-secret.yaml generated successfully.
secret/trino-bigquery-secret created

Once executed, the trino-bigquery-secret.yaml file will have the following structure:

trino-bigquery-secret.yaml

apiVersion: v1
kind: Secret
metadata:
  creationTimestamp: null
  name: trino-bigquery-secret
data:
  trino-sa.json: xxx

Installing Trino¶

First, add and update the Trino Helm repository. Then, deploy Trino in the trino namespace using the generated values.yaml file:

install.sh:bq

helm repo add trino https://trinodb.github.io/charts/
helm repo update
helm install trino trino/trino \
  -f values.yaml \
  -n trino \
  --version 1.39.1 \

Result

NAME: trino
LAST DEPLOYED: Fri Jun 13 17:49:52 2025
NAMESPACE: trino
STATUS: deployed
REVISION: 1
NOTES:
Get the application URL by running these commands:
  kubectl --namespace trino port-forward svc/trino 8080:8080
  echo "Visit http://127.0.0.1:8080 to use your application"

Verifying the Deployment¶

After the installation completes, verify that Trino has been deployed successfully. Show the deployed Trino release:

helm list -n trino

Result

NAME    NAMESPACE       REVISION        UPDATED                                 STATUS          CHART           APP VERSION
trino   trino           1               2025-06-13 18:08:54.435442 +0800 CST    deployed        trino-1.39.1    475

Then, check the status of all resources in the trino namespace:

kubectl get all -n trino

Result

NAME                                     READY   STATUS    RESTARTS   AGE
pod/trino-coordinator-6fdfb7bf84-tjwfc   1/1     Running   0          5m38s
pod/trino-worker-777d595c66-dml67        1/1     Running   0          5m38s
pod/trino-worker-777d595c66-pv9h2        1/1     Running   0          5m38s

NAME                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
service/trino          ClusterIP   10.99.208.168   <none>        8080/TCP,8443/TCP   5m38s
service/trino-worker   ClusterIP   None            <none>        8080/TCP            5m38s

NAME                                READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/trino-coordinator   1/1     1            1           5m38s
deployment.apps/trino-worker        2/2     2            2           5m38s

NAME                                           DESIRED   CURRENT   READY   AGE
replicaset.apps/trino-coordinator-6fdfb7bf84   1         1         1       5m38s
replicaset.apps/trino-worker-777d595c66        2         2         2       5m38s

Perfect! The deployment is successful. As you can see, the Trino coordinator and worker pods are up and running, and all services have been created correctly. With the cluster now operational, we can proceed to access the Trino Web UI and Trino CLI to interact with the cluster.

Web UI¶

To access the Trino Web UI, start by port-forwarding the Trino service to your local machine:

kubectl port-forward svc/trino 8443:8443 --namespace trino

Once the port forwarding is active, open your browser and navigate to https://127.0.0.1:8443. Since we're using a self-signed certificate for development purposes, your browser will display a security warning. This is expected behavior and safe to bypass in a development environment.

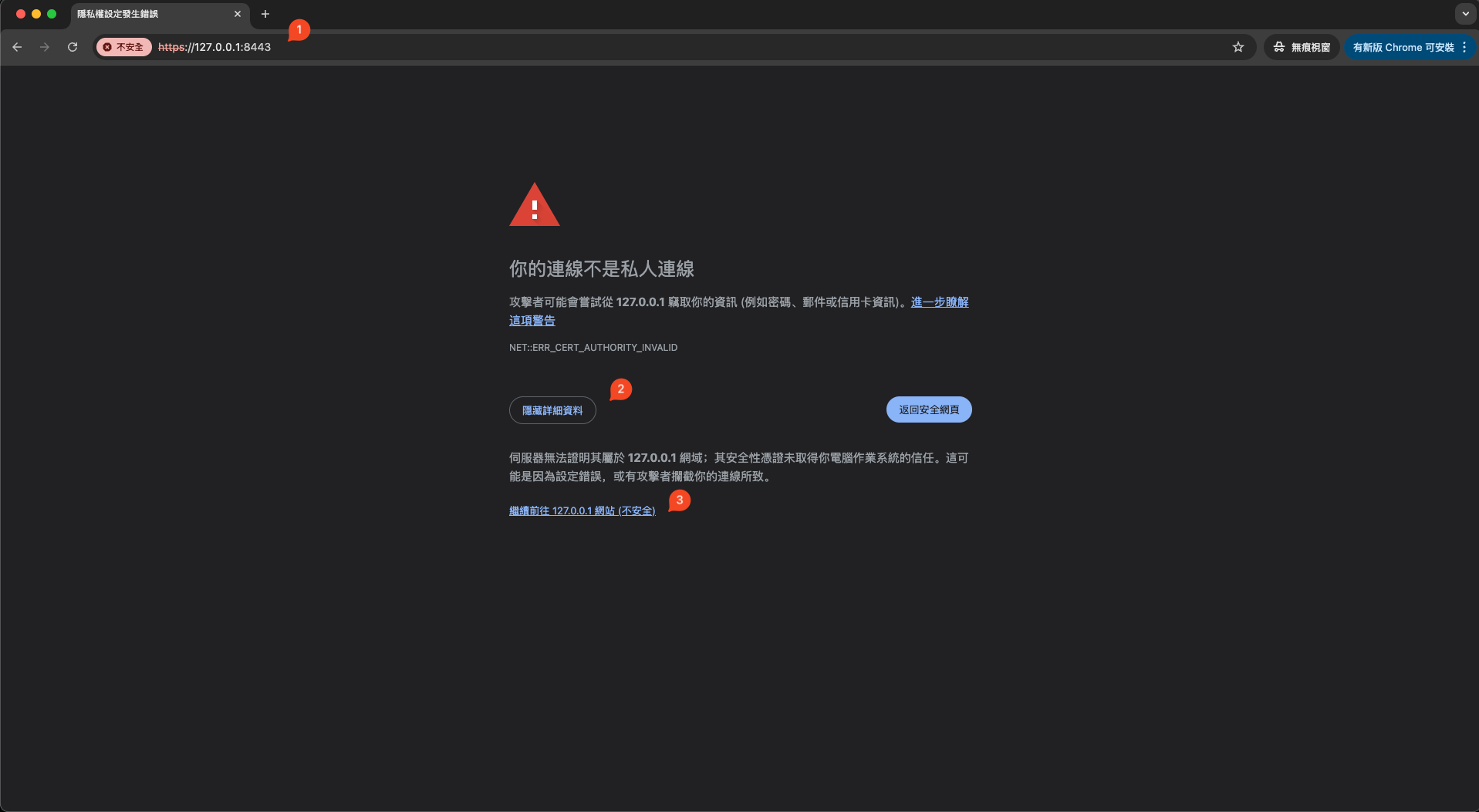

To proceed, click "Advanced" and then "Accept the Risk and Continue" (the exact wording may vary depending on your browser).

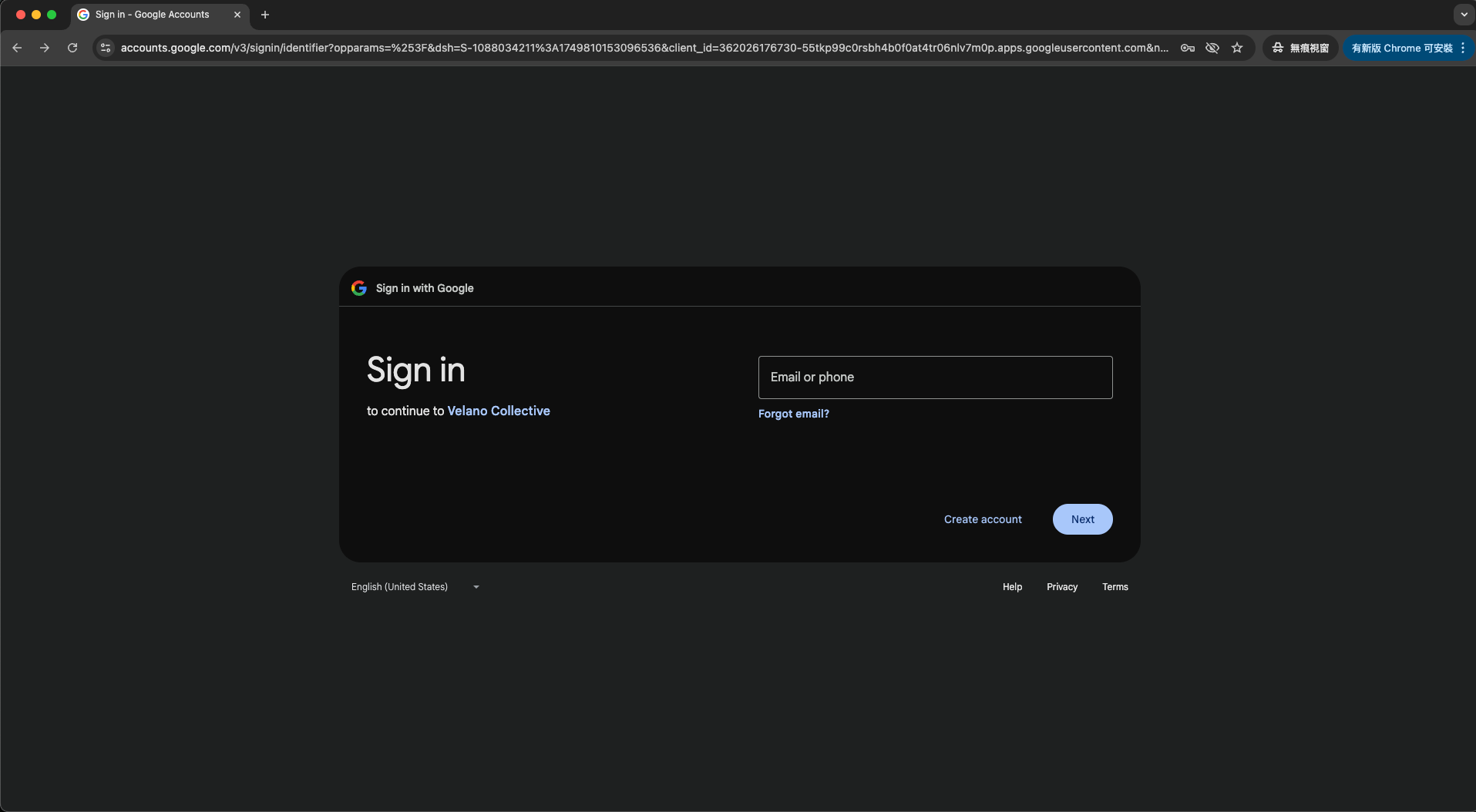

Since OAuth 2.0 authentication is enabled, you'll be automatically redirected to the Google login page for authentication.

After logging in with your Google account, you will be redirected back to the Trino Web UI.

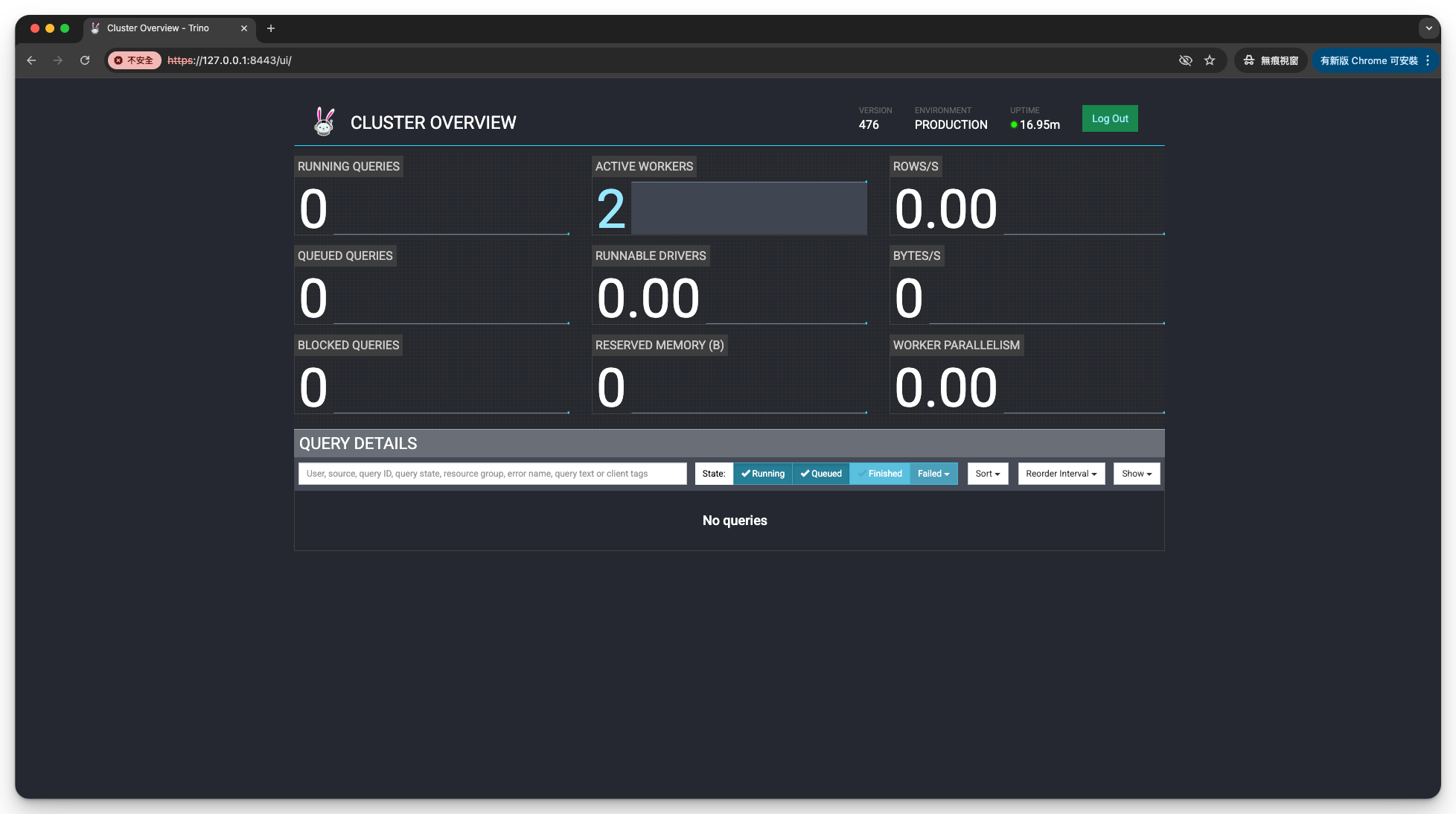

Once authenticated successfully, you'll be redirected back to the Trino Web UI where you can monitor queries, view cluster status, and manage your Trino environment.

Trino CLI¶

For command-line access to Trino, you'll need to download and install the Trino CLI tool.

First, download the trino-cli-476-executable.jar file from the Maven repository.

Next, rename the file to trino, make it executable, and move it to a directory in your PATH (such as /usr/local/bin):

cd ~/Projects/retail-lakehouse/trino
curl -L -o trino-cli-476-executable.jar https://repo1.maven.org/maven2/io/trino/trino-cli/476/trino-cli-476-executable.jar
chmod +x trino-cli-476-executable.jar
sudo mv trino-cli-476-executable.jar /usr/local/bin/trino

Verify the installation by checking the version:

trino --version

Result

Trino CLI 476

To connect to your Trino cluster, use the CLI with external authentication enabled:

trino --server https://127.0.0.1:8443 \
      --external-authentication \
      --insecure \
      --user "user@example.com"

Authentication Flow

The CLI authentication process works as follows:

Start the CLI with the --external-authentication option and execute a query.
The CLI starts and connects to Trino.
A message appears in the CLI directing you to open a browser with a specified URL when the first query is submitted.
Open the URL in a browser and follow through the authentication process.
The CLI automatically receives a token.
When successfully authenticated in the browser, the CLI proceeds to execute the query.
Further queries in the CLI session do not require additional logins while the authentication token remains valid. Token expiration depends on the external authentication type configuration.
Expired tokens force you to log in again.

This authentication method ensures secure access to your Trino cluster while maintaining ease of use for interactive queries.

Cleanup¶

To remove the Trino cluster:

helm uninstall trino --namespace trino
kubectl delete namespace trino
