Deployment

You can deploy Strimzi on Kubernetes 1.25 and later using one of the following methods:

  • Deployment files (YAML files)
  • OperatorHub.io
  • Helm chart

The basic deployment path includes the following steps:

  • Deploy the Strimzi Cluster Operator
  • Deploy a Kafka Cluster
  • Deploy a MySQL Database
  • Deploy a Debezium Source Connector
    • Create a Secret for Connecting to the Database
    • Create a Debezium Kafka Connect Cluster
    • Create a Debezium Source Connector
    • Verify the Data Pipeline
  • Deploy an Iceberg Sink Connector
    • Create a Secret for Connecting to AWS
    • Create an Iceberg Kafka Connect Cluster
    • Create an Iceberg Sink Connector
    • Verify the Data Pipeline

Deploy the Strimzi Cluster Operator

Before we dive into deploying Kafka, let's talk about what Strimzi is and why we need it. Strimzi is a Kubernetes operator that makes running Apache Kafka on Kubernetes much easier. Think of it as your Kafka cluster manager - it handles all the complex setup, configuration, and maintenance tasks that would otherwise require manual intervention.

Instead of manually creating Kafka pods, services, and configurations, Strimzi lets you define what you want in simple YAML files, and it takes care of the rest.

First, we need to create two separate Kubernetes namespaces, one for the Strimzi operator and another for our Kafka cluster:

kubectl create namespace strimzi
kubectl create namespace kafka-cdc

Why separate namespaces? It's a best practice to keep the operator (the manager) separate from the workloads it manages (the Kafka cluster). This makes it easier to manage permissions and troubleshoot issues.

Before installing Strimzi, let's take a look at what configuration options are available. Helm charts come with default values, but it's always good to see what we can customize:

helm show values oci://quay.io/strimzi-helm/strimzi-kafka-operator > values-default.yaml

The most important setting we'll change is watchNamespaces - this tells Strimzi which namespaces it should monitor for Kafka-related resources.

Here's our customized configuration:

values.yaml
1

The highlighted lines tell Strimzi to specifically watch the kafka-cdc namespace where we'll deploy our Kafka cluster.

Now for the exciting part - let's install Strimzi using Helm:

helm install strimzi-cluster-operator oci://quay.io/strimzi-helm/strimzi-kafka-operator -f values.yaml -n strimzi

If everything goes well, you'll see output like this:

Pulled: quay.io/strimzi-helm/strimzi-kafka-operator:0.46.1
Digest: sha256:e87ea2a03985f5dd50fee1f8706f737fa1151b86dce5021b6c0798ac8b17e27f
NAME: strimzi-cluster-operator
LAST DEPLOYED: Sun Jun 29 17:25:49 2025
NAMESPACE: strimzi
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Thank you for installing strimzi-kafka-operator-0.46.1

To create a Kafka cluster refer to the following documentation.

https://strimzi.io/docs/operators/latest/deploying.html#deploying-cluster-operator-helm-chart-str

Great! The STATUS: deployed tells us everything went smoothly.

Let's make sure our Strimzi operator is actually running. First, let's check if Helm recognizes our installation:

helm ls -n strimzi

You should see something like this:

NAME                        NAMESPACE   REVISION    UPDATED                                 STATUS      HART                            APP VERSION
strimzi-cluster-operator    strimzi     1           2025-06-29 17:25:49.773026 +0800 CST    deployed    trimzi-kafka-operator-0.46.1    0.46.1

Now let's check what Kubernetes resources were actually created:

kubectl get all -n strimzi

Here's what you should see:

NAME                                           READY   STATUS    RESTARTS   AGE
pod/strimzi-cluster-operator-74f577b78-s9n25   1/1     Running   0          108s

NAME                                           READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/strimzi-cluster-operator       1/1     1            1           108s

NAME                                                 DESIRED   CURRENT   READY   AGE
replicaset.apps/strimzi-cluster-operator-74f577b78   1         1         1       108s

Perfect! At this point, the Strimzi operator is running and watching for Kafka-related resources in the kafka-cdc namespace. It's like having a dedicated Kafka administrator ready to spring into action whenever we create Kafka clusters or related components.

Deploy a Kafka Cluster

Now that we have Strimzi operator running, let's deploy our actual Kafka cluster! If you're coming from a traditional Kafka background, you might be expecting to see ZooKeeper configurations, but we're going to use Kafka's newer KRaft mode instead. Think of KRaft as Kafka's way of saying "I don't need ZooKeeper anymore - I can manage my own metadata."

The configuration file we'll use defines not just a Kafka cluster, but also something called a KafkaNodePool. This is Strimzi's way of letting you organize your Kafka nodes into different groups with different roles and storage configurations.

kafka-cluster.yaml
apiVersion: kafka.strimzi.io/v1beta2
kind: Kafka
metadata:
  name: kafka-cluster
  annotations:
    strimzi.io/node-pools: enabled
    strimzi.io/kraft: enabled
spec:
  kafka:
    version: 4.0.0
    metadataVersion: 4.0-IV3
    listeners:
      - name: plain
        port: 9092
        type: internal
        tls: false
      - name: tls
        port: 9093
        type: internal
        tls: true
    config:
      offsets.topic.replication.factor: 3
      transaction.state.log.replication.factor: 3
      transaction.state.log.min.isr: 2
      default.replication.factor: 3
      min.insync.replicas: 2
  entityOperator:
    topicOperator: {}
    userOperator: {}

---

apiVersion: kafka.strimzi.io/v1beta2
kind: KafkaNodePool
metadata:
  name: dual-role
  labels:
    strimzi.io/cluster: kafka-cluster
spec:
  replicas: 3
  roles:
    - controller
    - broker
  storage:
    type: jbod
    volumes:
      - id: 0
        type: persistent-claim
        size: 100Gi
        deleteClaim: false
        kraftMetadata: shared

Let's break down what this configuration is telling Kubernetes to create for us.

The Kafka 4.0 Context: You'll notice we're using Kafka 4.0, which defaults to KRaft mode. The metadataVersion: 4.0-IV3 setting is important - the "IV" stands for "Incompatible Version," which means this version has significant metadata structure changes that aren't backward compatible. We need to explicitly specify this to confirm we understand we're using the latest format.

Understanding KRaft Mode

If you've worked with Kafka before, you might remember the pain of managing ZooKeeper alongside your Kafka clusters. KRaft mode eliminates that complexity entirely. Here's what makes it special:

What KRaft Replaces: Instead of relying on an external ZooKeeper ensemble to store Kafka's metadata (like topic configurations, partition assignments, and cluster membership), Kafka brokers now handle this responsibility themselves using a consensus algorithm similar to Raft.

Why This Matters:

  • Simplified Operations: One less system to deploy, monitor, and troubleshoot
  • Better Performance: No more network hops to ZooKeeper for metadata operations
  • Improved Reliability: Fewer moving parts means fewer potential failure points

To enable KRaft mode in Strimzi, we add two key annotations to our Kafka resource:

  • strimzi.io/node-pools: enabled: Tells Strimzi we want to use the newer node pool architecture
  • strimzi.io/kraft: enabled: Enables KRaft mode instead of ZooKeeper

Node Pools: Organizing Your Kafka Nodes

The KafkaNodePool concept lets you organize your Kafka nodes into logical groups. In our case, we're creating a "dual-role" pool where each node acts as both a controller (managing metadata) and a broker (handling client requests).

Our Dual-Role Setup: We're creating 3 nodes that each serve both functions. This is perfect for development and smaller production deployments because:

  • Resource Efficient: Fewer total machines needed
  • Simpler Architecture: No need to separate controller and broker concerns
  • Still Highly Available: With 3 nodes, we can tolerate losing one node

Storage Configuration: Each node gets a 100GB persistent volume that stores both regular Kafka logs and KRaft metadata. The kraftMetadata: shared setting means both types of data live on the same disk, which is fine for most use cases.

Listeners: How Clients Connect

Our configuration sets up two ways for applications to connect to Kafka:

Plain Listener (port 9092): This is your standard, unencrypted connection. Perfect for:

  • Development environments
  • Internal applications where network security is handled at other layers
  • High-throughput scenarios where TLS overhead isn't desired

TLS Listener (port 9093): This provides encrypted connections for:

  • Cross-namespace communication
  • Production environments with security requirements
  • Any scenario where data in transit needs protection

Configuration Deep Dive

The configuration section ensures our cluster is production-ready with proper replication and consistency guarantees:

Replication Settings: We're telling Kafka to keep 3 copies of everything - your regular topics, consumer offset tracking, and transaction state. This means we can lose one broker and still have all our data.

Consistency Settings: The min.insync.replicas: 2 setting is particularly important. It means that when a producer sends a message, Kafka won't acknowledge it as "successfully written" until at least 2 brokers have the data. This prevents data loss even if a broker fails right after acknowledging a write.

Watching Your Cluster Come Online

Now let's deploy this configuration and see it come to life!

kubectl create -f kafka-cluster.yaml -n kafka-cdc

This command tells Kubernetes to create both the Kafka cluster and the node pool in our kafka-cdc namespace. You should see output confirming both resources were created:

kafka.kafka.strimzi.io/kafka-cluster created
kafkanodepool.kafka.strimzi.io/dual-role created

Kafka clusters take a bit of time to start up - they need to elect controllers, establish consensus, and create internal topics. Let's check on the progress:

kubectl get all -n kafka-cdc

Initially, you might see pods in Pending or ContainerCreating status. After a minute or two, you should see something like this:

NAME                                                    READY   STATUS    RESTARTS   AGE
pod/kafka-cluster-dual-role-0                           1/1     Running   0          60s
pod/kafka-cluster-dual-role-1                           1/1     Running   0          60s
pod/kafka-cluster-dual-role-2                           1/1     Running   0          60s
pod/kafka-cluster-entity-operator-5b998f6cbf-c8hdf      2/2     Running   0          24s

NAME                                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                                        AGE
service/kafka-cluster-kafka-bootstrap      ClusterIP   10.105.50.103   <none>        9091/TCP,9092/TCP,9093/TCP                     61s
service/kafka-cluster-kafka-brokers        ClusterIP   None            <none>        9090/TCP,9091/TCP,8443/TCP,9092/TCP,9093/TCP   61s

NAME                                               READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kafka-cluster-entity-operator      1/1     1            1           24s

NAME                                                          DESIRED   CURRENT   READY   AGE
replicaset.apps/kafka-cluster-entity-operator-5b998f6cbf      1         1         1       24s

What You're Seeing:

  • Three Kafka Pods: These are your dual-role nodes, numbered 0, 1, and 2
  • Entity Operator: This Strimzi component manages Kafka topics and users for you
  • Bootstrap Service: This is how clients discover and connect to your Kafka cluster
  • Broker Service: This provides direct access to individual brokers when needed

Congratulations! You now have a fully functional Kafka cluster running in KRaft mode. In the next section, we'll deploy a MySQL database that will serve as our data source for change data capture.

Deploy a MySQL Database

db.yaml
apiVersion: v1
kind: Service
metadata:
  name: mysql
spec:
  ports:
  - port: 3306
  selector:
    app: mysql
  clusterIP: None
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mysql
spec:
  selector:
    matchLabels:
      app: mysql
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: mysql
    spec:
      containers:
      - image: quay.io/debezium/example-mysql:3.0
        name: mysql
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: debezium
        - name: MYSQL_USER
          value: mysqluser
        - name: MYSQL_PASSWORD
          value: mysqlpw
        ports:
        - containerPort: 3306
          name: mysql

kubectl apply -f db.yaml -n kafka-cdc

service/mysql created
deployment.apps/mysql created

kubectl get all -n kafka-cdc

NAME                                                    READY   STATUS    RESTARTS   AGE
pod/kafka-cluster-dual-role-0                           1/1     Running   0          15m
pod/kafka-cluster-dual-role-1                           1/1     Running   0          15m
pod/kafka-cluster-dual-role-2                           1/1     Running   0          15m
pod/kafka-cluster-entity-operator-5b998f6cbf-c8hdf      2/2     Running   0          15m
pod/mysql-6b84fd947d-9g9lt                              1/1     Running   0          10m

NAME                                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                                        AGE
service/kafka-cluster-kafka-bootstrap      ClusterIP   10.105.50.103   <none>        9091/TCP,9092/TCP,9093/TCP                     15m
service/kafka-cluster-kafka-brokers        ClusterIP   None            <none>        9090/TCP,9091/TCP,8443/TCP,9092/TCP,9093/TCP   15m
service/mysql                              ClusterIP   None            <none>        3306/TCP                                       10m

NAME                                               READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kafka-cluster-entity-operator      1/1     1            1           15m
deployment.apps/mysql                              1/1     1            1           10m

NAME                                                          DESIRED   CURRENT   READY   AGE
replicaset.apps/kafka-cluster-entity-operator-5b998f6cbf      1         1         1       15m
replicaset.apps/mysql-6b84fd947d                              1         1         1       10m

Deploy a Debezium Source Connector

Create Secrets for the Database

debezium-secret.yaml
1
2
3
4
5
6
7
8
9
apiVersion: v1
kind: Secret
metadata:
  name: debezium-secret
  namespace: kafka-cdc
type: Opaque
data:
  username: ZGViZXppdW0=
  password: ZGJ6
debezium-role.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: debezium-role
  namespace: kafka-cdc
rules:
- apiGroups: [""]
  resources: ["secrets"]
  resourceNames: ["debezium-secret"]
  verbs: ["get"]
debezium-role-binding.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: debezium-role-binding
  namespace: kafka-cdc
subjects:
- kind: ServiceAccount
  name: debezium-connect-cluster-connect
  namespace: kafka-cdc
roleRef:
  kind: Role
  name: debezium-role
  apiGroup: rbac.authorization.k8s.io

kubectl apply -f debezium-secret.yaml
kubectl apply -f debezium-role.yaml
kubectl apply -f debezium-role-binding.yaml

secret/debezium-secret created
role.rbac.authorization.k8s.io/debezium-role created
rolebinding.rbac.authorization.k8s.io/debezium-role-binding created

Create a Debezium Kafka Connect Cluster

To deploy a Debezium connector, you need to deploy a Kafka Connect cluster with the required connector plug-in(s), before instantiating the actual connector itself.

As the first step, a container image for Kafka Connect with the plug-in has to be created.

Strimzi also can be used for building and pushing the required container image for us. In fact, both tasks can be merged together and instructions for building the container image can be provided directly within the KafkaConnect object specification:

minikube addons enable registry

💡  registry is an addon maintained by minikube. For any concerns contact minikube on GitHub.
You can view the list of minikube maintainers at: https://github.com/kubernetes/minikube/blob/master/OWNERS
╭──────────────────────────────────────────────────────────────────────────────────────────────────────╮
│                                                                                                      │
│    Registry addon with docker driver uses port 49609 please use that instead of default port 5000    │
│                                                                                                      │
╰──────────────────────────────────────────────────────────────────────────────────────────────────────╯
📘  For more information see: https://minikube.sigs.k8s.io/docs/drivers/docker
    ▪ Using image docker.io/registry:2.8.3
    ▪ Using image gcr.io/k8s-minikube/kube-registry-proxy:0.0.6
🔎  Verifying registry addon...
🌟  The 'registry' addon is enabled

kubectl -n kube-system get svc registry -o jsonpath='{.spec.clusterIP}'

10.103.211.36
debezium-connect-cluster.yaml
apiVersion: kafka.strimzi.io/v1beta2
kind: KafkaConnect
metadata:
  name: debezium-connect-cluster
  annotations:
    strimzi.io/use-connector-resources: "true"
spec:
  version: 4.0.0
  replicas: 1
  bootstrapServers: kafka-cluster-kafka-bootstrap:9092
  config:
    config.providers: secrets
    config.providers.secrets.class: io.strimzi.kafka.KubernetesSecretConfigProvider
    group.id: debezium-connect-cluster
    offset.storage.topic: debezium-connect-cluster-offsets
    config.storage.topic: debezium-connect-cluster-configs
    status.storage.topic: debezium-connect-cluster-status
    # -1 means it will use the default replication factor configured in the broker
    offset.storage.replication.factor: -1
    config.storage.replication.factor: -1
    status.storage.replication.factor: -1
  build:
    output:
      type: docker
      image: 10.103.211.36/debezium-connect-mysql:latest
    plugins:
      - name: debezium-mysql-connector
        artifacts:
          - type: tgz
            url: https://repo1.maven.org/maven2/io/debezium/debezium-connector-mysql/3.1.0.Final/debezium-connector-mysql-3.1.0.Final-plugin.tar.gz

kubectl apply -f debezium-connect-cluster.yaml -n kafka-cdc

kafkaconnect.kafka.strimzi.io/debezium-connect-cluster created

Check the current resources in the kafka-cdc namespace:

kubectl get all -n kafka-cdc

NAME                                                    READY   STATUS    RESTARTS   AGE
pod/kafka-cluster-dual-role-0                           1/1     Running   0          66m
pod/kafka-cluster-dual-role-1                           1/1     Running   0          66m
pod/kafka-cluster-dual-role-2                           1/1     Running   0          66m
pod/kafka-cluster-entity-operator-5b998f6cbf-c8hdf      2/2     Running   0          65m
pod/debezium-connect-cluster-connect-build              1/1     Running   0          49s
pod/mysql-6b84fd947d-9g9lt                              1/1     Running   0          60m

NAME                                       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                                        AGE
service/kafka-cluster-kafka-bootstrap      ClusterIP   10.105.50.103   <none>        9091/TCP,9092/TCP,9093/TCP                     66m
service/kafka-cluster-kafka-brokers        ClusterIP   None            <none>        9090/TCP,9091/TCP,8443/TCP,9092/TCP,9093/TCP   66m
service/mysql                              ClusterIP   None            <none>        3306/TCP                                       60m

NAME                                               READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kafka-cluster-entity-operator      1/1     1            1           65m
deployment.apps/mysql                              1/1     1            1           60m

NAME                                                          DESIRED   CURRENT   READY   AGE
replicaset.apps/kafka-cluster-entity-operator-5b998f6cbf      1         1         1       65m
replicaset.apps/mysql-6b84fd947d                              1         1         1       60m

過一陣子後

NAME                                                    READY   STATUS    RESTARTS   AGE
pod/kafka-cluster-dual-role-0                           1/1     Running   0          100m
pod/kafka-cluster-dual-role-1                           1/1     Running   0          100m
pod/kafka-cluster-dual-role-2                           1/1     Running   0          100m
pod/kafka-cluster-entity-operator-5b998f6cbf-c8hdf      2/2     Running   0          99m
pod/debezium-connect-cluster-connect-0                  1/1     Running   0          30m
pod/mysql-6b84fd947d-9g9lt                              1/1     Running   0          94m

NAME                                           TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                                        AGE
service/kafka-cluster-kafka-bootstrap          ClusterIP   10.105.50.103    <none>        9091/TCP,9092/TCP,9093/TCP                     100m
service/kafka-cluster-kafka-brokers            ClusterIP   None             <none>        9090/TCP,9091/TCP,8443/TCP,9092/TCP,9093/TCP   100m
service/debezium-connect-cluster-connect       ClusterIP   None             <none>        8083/TCP                                       30m
service/debezium-connect-cluster-connect-api   ClusterIP   10.100.229.177   <none>        8083/TCP                                       30m
service/mysql                                  ClusterIP   None             <none>        3306/TCP                                       94m

NAME                                               READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kafka-cluster-entity-operator      1/1     1            1           99m
deployment.apps/mysql                              1/1     1            1           94m

NAME                                                          DESIRED   CURRENT   READY   AGE
replicaset.apps/kafka-cluster-entity-operator-5b998f6cbf      1         1         1       99m
replicaset.apps/mysql-6b84fd947d                              1         1         1       94m

Create a Debezium Source Connector

debezium-connector.yaml
apiVersion: kafka.strimzi.io/v1beta2
kind: KafkaConnector
metadata:
  name: debezium-connector
  labels:
    strimzi.io/cluster: debezium-connect-cluster
spec:
  class: io.debezium.connector.mysql.MySqlConnector
  tasksMax: 1
  config:
    tasks.max: 1
    database.hostname: mysql
    database.port: 3306
    database.user: ${secrets:kafka-cdc/debezium-secret:username}
    database.password: ${secrets:kafka-cdc/debezium-secret:password}
    database.server.id: 184054
    topic.prefix: mysql
    database.include.list: inventory
    schema.history.internal.kafka.bootstrap.servers: kafka-cluster-kafka-bootstrap:9092
    schema.history.internal.kafka.topic: schema-changes.inventory

kubectl apply -f debezium-connector.yaml -n kafka-cdc

kafkaconnector.kafka.strimzi.io/debezium-connector created

kubectl get kafkaconnector debezium-connector -n kafka-cdc

NAME                 CLUSTER                    CONNECTOR CLASS                              MAX TASKS   READY
debezium-connector   debezium-connect-cluster   io.debezium.connector.mysql.MySqlConnector   1           True

Verify the Data Pipeline

kubectl run kafka-topics-cli \
  -n kafka-cdc \
  -it --rm \
  --image=quay.io/strimzi/kafka:0.46.1-kafka-4.0.0 \
  --restart=Never -- \
  bin/kafka-topics.sh \
    --bootstrap-server kafka-cluster-kafka-bootstrap:9092 \
    --list
Result
__consumer_offsets
debezium-cluster-configs
debezium-cluster-offsets
debezium-cluster-status
mysql
mysql.inventory.addresses
mysql.inventory.customers
mysql.inventory.geom
mysql.inventory.orders
mysql.inventory.products
mysql.inventory.products_on_hand
schema-changes.inventory

kubectl run kafka-cli \
  -n kafka-cdc \
  -it --rm \
  --image=quay.io/strimzi/kafka:0.46.1-kafka-4.0.0 \
  --restart=Never -- \
  bin/kafka-console-consumer.sh \
    --bootstrap-server kafka-cluster-kafka-bootstrap:9092 \
    --topic mysql.inventory.customers \
    --partition 0
    --offset -10
    --max-messages 10

kubectl exec -n kafka-cdc -it mysql-6b84fd947d-9g9lt -- mysql -uroot -pdebezium

sql> use inventory;
sql> update customers set first_name="Sally Marie" where id=1001;
Result
{
"schema": {
    "type": "struct",
    "fields": [
    {
        "type": "struct",
        "fields": [
        {
            "type": "int32",
            "optional": false,
            "field": "id"
        },
        {
            "type": "string",
            "optional": false,
            "field": "first_name"
        },
        {
            "type": "string",
            "optional": false,
            "field": "last_name"
        },
        {
            "type": "string",
            "optional": false,
            "field": "email"
        }
        ],
        "optional": true,
        "name": "mysql.inventory.customers.Value",
        "field": "before"
    },
    {
        "type": "struct",
        "fields": [
        {
            "type": "int32",
            "optional": false,
            "field": "id"
        },
        {
            "type": "string",
            "optional": false,
            "field": "first_name"
        },
        {
            "type": "string",
            "optional": false,
            "field": "last_name"
        },
        {
            "type": "string",
            "optional": false,
            "field": "email"
        }
        ],
        "optional": true,
        "name": "mysql.inventory.customers.Value",
        "field": "after"
    },
    {
        "type": "struct",
        "fields": [
        {
            "type": "string",
            "optional": false,
            "field": "version"
        },
        {
            "type": "string",
            "optional": false,
            "field": "connector"
        },
        {
            "type": "string",
            "optional": false,
            "field": "name"
        },
        {
            "type": "int64",
            "optional": false,
            "field": "ts_ms"
        },
        {
            "type": "string",
            "optional": true,
            "name": "io.debezium.data.Enum",
            "version": 1,
            "parameters": {
            "allowed": "true,first,first_in_data_collection,last_in_data_collection,last,false,incremental"
            },
            "default": "false",
            "field": "snapshot"
        },
        {
            "type": "string",
            "optional": false,
            "field": "db"
        },
        {
            "type": "string",
            "optional": true,
            "field": "sequence"
        },
        {
            "type": "int64",
            "optional": true,
            "field": "ts_us"
        },
        {
            "type": "int64",
            "optional": true,
            "field": "ts_ns"
        },
        {
            "type": "string",
            "optional": true,
            "field": "table"
        },
        {
            "type": "int64",
            "optional": false,
            "field": "server_id"
        },
        {
            "type": "string",
            "optional": true,
            "field": "gtid"
        },
        {
            "type": "string",
            "optional": false,
            "field": "file"
        },
        {
            "type": "int64",
            "optional": false,
            "field": "pos"
        },
        {
            "type": "int32",
            "optional": false,
            "field": "row"
        },
        {
            "type": "int64",
            "optional": true,
            "field": "thread"
        },
        {
            "type": "string",
            "optional": true,
            "field": "query"
        }
        ],
        "optional": false,
        "name": "io.debezium.connector.mysql.Source",
        "version": 1,
        "field": "source"
    },
    {
        "type": "struct",
        "fields": [
        {
            "type": "string",
            "optional": false,
            "field": "id"
        },
        {
            "type": "int64",
            "optional": false,
            "field": "total_order"
        },
        {
            "type": "int64",
            "optional": false,
            "field": "data_collection_order"
        }
        ],
        "optional": true,
        "name": "event.block",
        "version": 1,
        "field": "transaction"
    },
    {
        "type": "string",
        "optional": false,
        "field": "op"
    },
    {
        "type": "int64",
        "optional": true,
        "field": "ts_ms"
    },
    {
        "type": "int64",
        "optional": true,
        "field": "ts_us"
    },
    {
        "type": "int64",
        "optional": true,
        "field": "ts_ns"
    }
    ],
    "optional": false,
    "name": "mysql.inventory.customers.Envelope",
    "version": 2
},
"payload": {
    "before": {
    "id": 1001,
    "first_name": "Sally",
    "last_name": "Thomas",
    "email": "sally.thomas@acme.com"
    },
    "after": {
    "id": 1001,
    "first_name": "Sally Marie",
    "last_name": "Thomas",
    "email": "sally.thomas@acme.com"
    },
    "source": {
    "version": "3.1.0.Final",
    "connector": "mysql",
    "name": "mysql",
    "ts_ms": 1751201044000,
    "snapshot": "false",
    "db": "inventory",
    "sequence": null,
    "ts_us": 1751201044000000,
    "ts_ns": 1751201044000000000,
    "table": "customers",
    "server_id": 1,
    "gtid": null,
    "file": "binlog.000002",
    "pos": 401,
    "row": 0,
    "thread": 14,
    "query": null
    },
    "transaction": null,
    "op": "u",
    "ts_ms": 1751201044907,
    "ts_us": 1751201044907793,
    "ts_ns": 1751201044907793970
}
}

Deploy an Iceberg Sink Connector

Build the Iceberg Connector ZIP Archive

Because the Iceberg Kafka Connect connector is not provided by Iceberg, you need to build the connector ZIP archive first. You can do this by cloning the Iceberg repository and checking out the desired version, then running the build command.

git clone https://github.com/apache/iceberg.git
git checkout apache-iceberg-1.9.1

./gradlew -x test -x integrationTest clean build
Result
Welcome to Gradle 8.13!

Here are the highlights of this release:
- Daemon JVM auto-provisioning
- Enhancements for Scala plugin and JUnit testing
- Improvements for build authors and plugin developers

For more details see https://docs.gradle.org/8.13/release-notes.html

Starting a Gradle Daemon (subsequent builds will be faster)
Configuration on demand is an incubating feature.

> Task :iceberg-aws:validateS3SignerSpec
Validating spec /Users/kcl/projects/iceberg/aws/src/main/resources/s3-signer-open-api.yaml

> Task :iceberg-open-api:validateRESTCatalogSpec
Validating spec /Users/kcl/projects/iceberg/open-api/rest-catalog-open-api.yaml
Spec is valid.

> Task :iceberg-aws:validateS3SignerSpec
Spec is valid.

> Task :iceberg-spark:iceberg-spark-3.5_2.12:scalastyleMainCheck
Processed 7 file(s)
Found 0 errors
Found 0 warnings
Finished in 4727 ms

> Task :iceberg-bundled-guava:shadowJar
MANIFEST.MF will be copied to 'META-INF/MANIFEST.MF', overwriting MANIFEST.MF, which has already been copied there.
file '/Users/kcl/projects/iceberg/bundled-guava/build/classes/java/main/org/apache/iceberg/GuavaClasses.class' will be copied to 'org/apache/iceberg/GuavaClasses.class', overwriting file '/Users/kcl/projects/iceberg/bundled-guava/build/classes/java/main/org/apache/iceberg/GuavaClasses.class', which has already been copied there.
file '/Users/kcl/.gradle/caches/modules-2/files-2.1/com.google.guava/guava/33.4.7-jre/c1f6ad95476208ef852f92919e7a9e22abd83a98/guava-33.4.7-jre.jar' will be copied to 'guava-33.4.7-jre.jar', overwriting file '/Users/kcl/.gradle/caches/modules-2/files-2.1/com.google.guava/guava/33.4.7-jre/c1f6ad95476208ef852f92919e7a9e22abd83a98/guava-33.4.7-jre.jar', which has already been copied there.
file '/Users/kcl/.gradle/caches/modules-2/files-2.1/com.google.guava/failureaccess/1.0.3/aeaffd00d57023a2c947393ed251f0354f0985fc/failureaccess-1.0.3.jar' will be copied to 'failureaccess-1.0.3.jar', overwriting file '/Users/kcl/.gradle/caches/modules-2/files-2.1/com.google.guava/failureaccess/1.0.3/aeaffd00d57023a2c947393ed251f0354f0985fc/failureaccess-1.0.3.jar', which has already been copied there.
file '/Users/kcl/.gradle/caches/modules-2/files-2.1/com.google.guava/listenablefuture/9999.0-empty-to-avoid-conflict-with-guava/b421526c5f297295adef1c886e5246c39d4ac629/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar' will be copied to 'listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar', overwriting file '/Users/kcl/.gradle/caches/modules-2/files-2.1/com.google.guava/listenablefuture/9999.0-empty-to-avoid-conflict-with-guava/b421526c5f297295adef1c886e5246c39d4ac629/listenablefuture-9999.0-empty-to-avoid-conflict-with-guava.jar', which has already been copied there.
file '/Users/kcl/.gradle/caches/modules-2/files-2.1/org.jspecify/jspecify/1.0.0/7425a601c1c7ec76645a78d22b8c6a627edee507/jspecify-1.0.0.jar' will be copied to 'jspecify-1.0.0.jar', overwriting file '/Users/kcl/.gradle/caches/modules-2/files-2.1/org.jspecify/jspecify/1.0.0/7425a601c1c7ec76645a78d22b8c6a627edee507/jspecify-1.0.0.jar', which has already been copied there.
file '/Users/kcl/projects/iceberg/bundled-guava/LICENSE' will be copied to 'LICENSE', overwriting file '/Users/kcl/projects/iceberg/bundled-guava/LICENSE', which has already been copied there.
file '/Users/kcl/projects/iceberg/bundled-guava/NOTICE' will be copied to 'NOTICE', overwriting file '/Users/kcl/projects/iceberg/bundled-guava/NOTICE', which has already been copied there.

> Task :iceberg-common:compileJava
/Users/kcl/projects/iceberg/common/src/main/java/org/apache/iceberg/common/DynConstructors.java:270: Note: [SafeLoggingPropagation] Safe logging annotations should be propagated to encapsulating elements to allow static analysis tooling to work with as much information as possible. This check can be auto-fixed using `./gradlew classes testClasses -PerrorProneApply=SafeLoggingPropagation`
private static String formatProblems(Map<String, Throwable> problems) {
                        ^
    (see https://github.com/palantir/gradle-baseline#baseline-error-prone-checks)
Did you mean '@Unsafe private static String formatProblems(Map<String, Throwable> problems) {'?
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-api:compileJava
/Users/kcl/projects/iceberg/api/src/main/java/org/apache/iceberg/transforms/Timestamps.java:47: warning: [ImmutableEnumChecker] enums should be immutable: 'Timestamps' has field 'apply' of type 'org.apache.iceberg.util.SerializableFunction<java.lang.Long,java.lang.Integer>', the declaration of type 'org.apache.iceberg.util.SerializableFunction<java.lang.Long,java.lang.Integer>' is not annotated with @com.google.errorprone.annotations.Immutable
private final SerializableFunction<Long, Integer> apply;
                                                    ^
    (see https://errorprone.info/bugpattern/ImmutableEnumChecker)

> Task :iceberg-spark:iceberg-spark-extensions-3.5_2.12:scalastyleMainCheck
Processed 48 file(s)
Found 0 errors
Found 0 warnings
Finished in 8938 ms

> Task :iceberg-api:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.
1 warning

> Task :iceberg-api:compileTestJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-api:testJar
file '/Users/kcl/projects/iceberg/build/iceberg-build.properties' will be copied to 'iceberg-build.properties', overwriting file '/Users/kcl/projects/iceberg/api/build/resources/test/iceberg-build.properties', which has already been copied there.

> Task :iceberg-core:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-azure:compileJava
/Users/kcl/projects/iceberg/azure/src/main/java/org/apache/iceberg/azure/adlsv2/ADLSFileIO.java:136: warning: [UnnecessaryParentheses] These grouping parentheses are unnecessary; it is unlikely the code will be misinterpreted without them
        .ifPresent((provider -> this.vendedAdlsCredentialProvider = provider));
                ^
    (see https://errorprone.info/bugpattern/UnnecessaryParentheses)
Did you mean '.ifPresent( provider -> this.vendedAdlsCredentialProvider = provider);'?
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
1 warning

> Task :iceberg-aliyun:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-parquet:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-aws:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-data:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-arrow:compileJava
Note: /Users/kcl/projects/iceberg/arrow/src/main/java/org/apache/iceberg/arrow/ArrowSchemaUtil.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-core:compileTestJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-gcp:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-aws:compileTestJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-aws:compileIntegrationJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-arrow:compileTestJava
Note: /Users/kcl/projects/iceberg/arrow/src/test/java/org/apache/iceberg/arrow/vectorized/ArrowReaderTest.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-data:compileTestJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-hive-metastore:compileTestJava
Note: /Users/kcl/projects/iceberg/hive-metastore/src/test/java/org/apache/iceberg/hive/TestHiveCatalog.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: /Users/kcl/projects/iceberg/hive-metastore/src/test/java/org/apache/iceberg/hive/TestHiveCatalog.java uses unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-mr:compileJava
Note: /Users/kcl/projects/iceberg/mr/src/main/java/org/apache/iceberg/mr/mapred/MapredIcebergInputFormat.java uses unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-nessie:compileJava
Note: /Users/kcl/projects/iceberg/nessie/src/main/java/org/apache/iceberg/nessie/NessieIcebergClient.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-parquet:javadoc
/Users/kcl/projects/iceberg/parquet/src/main/java/org/apache/iceberg/data/parquet/GenericParquetWriter.java:64: warning: reference not accessible: org.apache.iceberg.data.parquet.BaseParquetWriter
* @deprecated will be removed in 1.10.0; use {@link #createWriter(Types.StructType, MessageType)}
                                                ^
/Users/kcl/projects/iceberg/parquet/src/main/java/org/apache/iceberg/data/parquet/InternalWriter.java:67: warning: reference not accessible: org.apache.iceberg.data.parquet.BaseParquetWriter
* @deprecated will be removed in 1.10.0; use {@link #createWriter(Types.StructType, MessageType)}
                                                ^
/Users/kcl/projects/iceberg/parquet/src/main/java/org/apache/iceberg/data/parquet/GenericParquetWriter.java:64: warning: reference not accessible: org.apache.iceberg.data.parquet.BaseParquetWriter
* @deprecated will be removed in 1.10.0; use {@link #createWriter(Types.StructType, MessageType)}
                                                ^
/Users/kcl/projects/iceberg/parquet/src/main/java/org/apache/iceberg/data/parquet/InternalWriter.java:67: warning: reference not accessible: org.apache.iceberg.data.parquet.BaseParquetWriter
* @deprecated will be removed in 1.10.0; use {@link #createWriter(Types.StructType, MessageType)}
                                                ^
4 warnings

> Task :iceberg-parquet:compileTestJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-spark:iceberg-spark-3.5_2.12:compileScala
[Warn] : javac: [options] system modules path not set in conjunction with -source 11
Could not determine source for class org.apache.iceberg.spark.ImmutableParquetBatchReadConf
Could not determine source for class org.apache.iceberg.spark.ImmutableOrcBatchReadConf$Builder
Could not determine source for class org.apache.iceberg.spark.ImmutableOrcBatchReadConf
Could not determine source for class org.apache.iceberg.spark.ImmutableParquetBatchReadConf$Builder

> Task :iceberg-kafka-connect:iceberg-kafka-connect:compileJava
Note: /Users/kcl/projects/iceberg/kafka-connect/kafka-connect/src/main/java/org/apache/iceberg/connect/channel/CommitterImpl.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-flink:iceberg-flink-1.20:compileJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-spark:iceberg-spark-3.5_2.12:compileTestJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-spark:iceberg-spark-3.5_2.12:compileJmhJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.

> Task :iceberg-spark:iceberg-spark-extensions-3.5_2.12:compileTestJava
Note: /Users/kcl/projects/iceberg/spark/v3.5/spark-extensions/src/test/java/org/apache/iceberg/spark/extensions/TestRewritePositionDeleteFiles.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

> Task :iceberg-flink:iceberg-flink-1.20:compileTestJava
Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: Some input files use unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

[Incubating] Problems report is available at: file:///Users/kcl/projects/iceberg/build/reports/problems/problems-report.html

Deprecated Gradle features were used in this build, making it incompatible with Gradle 9.0.

You can use '--warning-mode all' to show the individual deprecation warnings and determine if they come from your own scripts or plugins.

For more on this, please refer to https://docs.gradle.org/8.13/userguide/command_line_interface.html#sec:command_line_warnings in the Gradle documentation

BUILD SUCCESSFUL in 27m 45s
454 actionable tasks: 443 executed, 5 from cache, 6 up-to-date

The ZIP archive will be found under ./kafka-connect/kafka-connect-runtime/build/distributions. There is one distribution that bundles the Hive Metastore client and related dependencies, and one that does not.

Upload the ZIP archive to a publicly accessible S3 bucket so that the Iceberg Kafka Connect connector can be downloaded during the Kafka Connect cluster creation and image build process. Make note of the ZIP archive URL, as it will be required in subsequent steps.

Create a Secret for Connecting to AWS

iceberg-secret.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
apiVersion: v1
kind: Secret
metadata:
  name: iceberg-secret
  namespace: kafka-cdc
type: Opaque
data:
  awsAccessKey: QUtJQVg2RU5IV1dMS05LSUtLNlQK
  awsSecretAccessKey: UDd3R29qSm05Z0VyZ3Fqc3NaOTVGVEE0cDlQTlMxcWJVZDJMS0ViVgo=
  awsRegion: YXAtbm9ydGhlYXN0LTEK

kubectl apply -f iceberg-secret.yaml -n kafka-cdc

Create an Iceberg Kafka Connect Cluster

iceberg-connect-cluster.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
apiVersion: kafka.strimzi.io/v1beta2
kind: KafkaConnect
metadata:
  name: iceberg-connect-cluster
  annotations:
    strimzi.io/use-connector-resources: "true"
spec:
  version: 4.0.0
  replicas: 1
  bootstrapServers: kafka-cluster-kafka-bootstrap:9092
  config:
    config.providers: secrets
    config.providers.secrets.class: io.strimzi.kafka.KubernetesSecretConfigProvider
    group.id: iceberg-connect-cluster
    offset.storage.topic: iceberg-connect-cluster-offsets
    config.storage.topic: iceberg-connect-cluster-configs
    status.storage.topic: iceberg-connect-cluster-status
    # -1 means it will use the default replication factor configured in the broker
    offset.storage.replication.factor: -1
    config.storage.replication.factor: -1
    status.storage.replication.factor: -1
  build:
    output:
      type: docker
      image: 10.103.211.36/iceberg-connect:latest
    plugins:
      - name: iceberg-connect
        artifacts:
          - type: zip
            url: https://static-file-4hj2.s3.ap-northeast-1.amazonaws.com/iceberg-kafka-connect-runtime-1.10.0-SNAPSHOT.zip
  template:
    connectContainer:
      env:
        - name: AWS_ACCESS_KEY_ID
          valueFrom:
            secretKeyRef:
              name: iceberg-secret
              key: awsAccessKey
        - name: AWS_SECRET_ACCESS_KEY
          valueFrom:
            secretKeyRef:
              name: iceberg-secret
              key: awsSecretAccessKey
        - name: AWS_REGION
          valueFrom:
            secretKeyRef:
              name: iceberg-secret
              key: awsRegion

kubectl apply -f iceberg-connect-cluster.yaml -n kafka-cdc

kubectl get all -n kafka-cdc

NAME                                                 READY   STATUS    RESTARTS   AGE
pod/debezium-connect-cluster-connect-0               1/1     Running   0          8m15s
pod/iceberg-connect-cluster-connect-0                1/1     Running   0          73s
pod/kafka-cluster-dual-role-0                        1/1     Running   0          14m
pod/kafka-cluster-dual-role-1                        1/1     Running   0          14m
pod/kafka-cluster-dual-role-2                        1/1     Running   0          14m
pod/kafka-cluster-entity-operator-598bb8df8b-q2d4x   2/2     Running   0          13m
pod/mysql-6b84fd947d-kpdk4                           1/1     Running   0          12m

NAME                                           TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                                        AGE
service/debezium-connect-cluster-connect       ClusterIP   None             <none>        8083/TCP                                       8m15s
service/debezium-connect-cluster-connect-api   ClusterIP   10.103.185.205   <none>        8083/TCP                                       8m15s
service/iceberg-connect-cluster-connect        ClusterIP   None             <none>        8083/TCP                                       73s
service/iceberg-connect-cluster-connect-api    ClusterIP   10.102.45.63     <none>        8083/TCP                                       73s
service/kafka-cluster-kafka-bootstrap          ClusterIP   10.105.98.134    <none>        9091/TCP,9092/TCP,9093/TCP                     14m
service/kafka-cluster-kafka-brokers            ClusterIP   None             <none>        9090/TCP,9091/TCP,8443/TCP,9092/TCP,9093/TCP   14m
service/mysql                                  ClusterIP   None             <none>        3306/TCP                                       12m

NAME                                            READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/kafka-cluster-entity-operator   1/1     1            1           13m
deployment.apps/mysql                           1/1     1            1           12m

NAME                                                       DESIRED   CURRENT   READY   AGE
replicaset.apps/kafka-cluster-entity-operator-598bb8df8b   1         1         1       13m
replicaset.apps/mysql-6b84fd947d                           1         1         1       12m

Create an Iceberg Sink Connector

iceberg-connector.yaml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
apiVersion: kafka.strimzi.io/v1beta2
kind: KafkaConnector
metadata:
  name: iceberg-connector
  labels:
    strimzi.io/cluster: iceberg-connect-cluster
spec:
  class: org.apache.iceberg.connect.IcebergSinkConnector
  tasksMax: 1
  config:
    tasks.max: 1
    topics: mysql.inventory.orders
    iceberg.tables: inventory.orders
    iceberg.tables.default-commit-branch: main # Default branch for commits, main is used if not specified
    # iceberg.tables.default-id-columns: # TODO Default comma-separated list of columns that identify a row in tables (primary key)
    iceberg.tables.auto-create-enabled: true # Set to true to automatically create destination tables, default is false
    iceberg.tables.auto-create-props.format-version: 2
    iceberg.tables.auto-create-props.write.format.default: parquet
    iceberg.tables.auto-create-props.write.parquet.compression-codec: snappy
    iceberg.tables.evolve-schema-enabled: true # Set to true to add any missing record fields to the table schema, default is false
    # iceberg.tables.default-id-columns # TODO
    iceberg.catalog: retail
    iceberg.catalog.type: glue
    # iceberg.catalog.catalog-impl: org.apache.iceberg.aws.glue.GlueCatalog
    iceberg.catalog.io-impl: org.apache.iceberg.aws.s3.S3FileIO
    iceberg.catalog.warehouse: s3a://retail-lakehouse-7dj2/warehouse
    transforms: debezium
    transforms.debezium.type: org.apache.iceberg.connect.transforms.DebeziumTransform

kubectl apply -f iceberg-connector.yaml -n kafka-cdc

kubectl get kafkaconnector -n kafka-cdc

NAME                 CLUSTER                    CONNECTOR CLASS                                   MAX TASKS   READY
debezium-connector   debezium-connect-cluster   io.debezium.connector.mysql.MySqlConnector        1           True
iceberg-connector    iceberg-connect-cluster    org.apache.iceberg.connect.IcebergSinkConnector   1           True

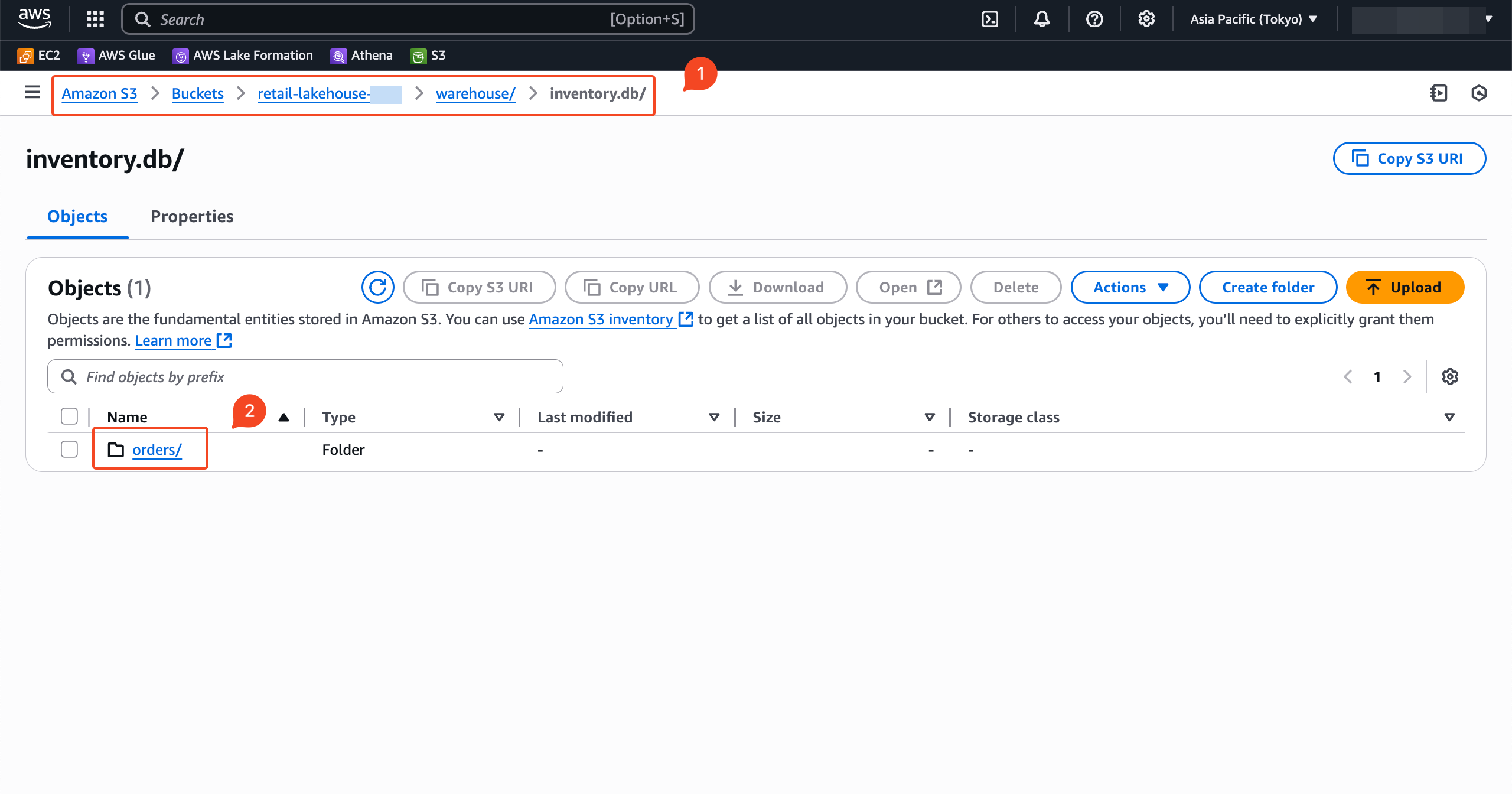

Verify the Data Pipeline

kubectl exec -n kafka-cdc -it mysql-6b84fd947d-9g9lt -- mysql -uroot -pdebezium

sql> use inventory;
sql> INSERT INTO orders (order_date, purchaser, quantity, product_id)
VALUES ('2016-03-01', 1004, 3, 108);

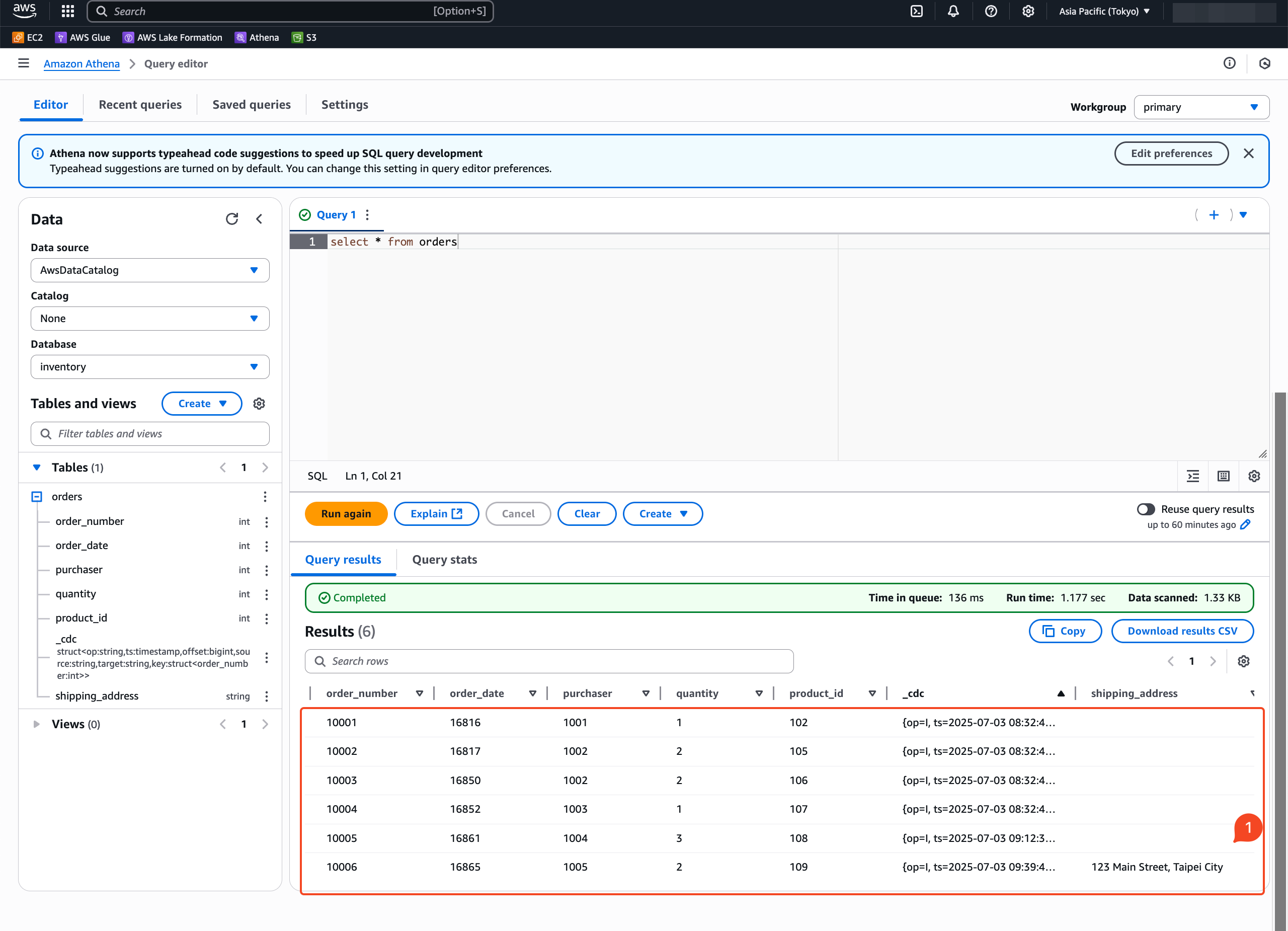

Schema Evolution

mysql> ALTER TABLE orders ADD COLUMN shipping_address TEXT DEFAULT NULL;
Query OK, 0 rows affected (0.30 sec)
Records: 0  Duplicates: 0  Warnings: 0

mysql> describe orders;
+------------------+------+------+-----+---------+----------------+
| Field            | Type | Null | Key | Default | Extra          |
+------------------+------+------+-----+---------+----------------+
| order_number     | int  | NO   | PRI | NULL    | auto_increment |
| order_date       | date | NO   |     | NULL    |                |
| purchaser        | int  | NO   | MUL | NULL    |                |
| quantity         | int  | NO   |     | NULL    |                |
| product_id       | int  | NO   | MUL | NULL    |                |
| shipping_address | text | YES  |     | NULL    |                |
+------------------+------+------+-----+---------+----------------+
6 rows in set (0.05 sec)

mysql> select * from orders;
+--------------+------------+-----------+----------+------------+------------------+
| order_number | order_date | purchaser | quantity | product_id | shipping_address |
+--------------+------------+-----------+----------+------------+------------------+
|        10001 | 2016-01-16 |      1001 |        1 |        102 | NULL             |
|        10002 | 2016-01-17 |      1002 |        2 |        105 | NULL             |
|        10003 | 2016-02-19 |      1002 |        2 |        106 | NULL             |
|        10004 | 2016-02-21 |      1003 |        1 |        107 | NULL             |
|        10005 | 2016-03-01 |      1004 |        3 |        108 | NULL             |
+--------------+------------+-----------+----------+------------+------------------+
5 rows in set (0.00 sec)

INSERT INTO orders (order_date, purchaser, quantity, product_id, shipping_address)
VALUES ('2016-03-05', 1005, 2, 109, '123 Main Street, Taipei City');
Query OK, 1 row affected (0.04 sec)

mysql> select * from orders;
+--------------+------------+-----------+----------+------------+------------------------------+
| order_number | order_date | purchaser | quantity | product_id | shipping_address             |
+--------------+------------+-----------+----------+------------+------------------------------+
|        10001 | 2016-01-16 |      1001 |        1 |        102 | NULL                         |
|        10002 | 2016-01-17 |      1002 |        2 |        105 | NULL                         |
|        10003 | 2016-02-19 |      1002 |        2 |        106 | NULL                         |
|        10004 | 2016-02-21 |      1003 |        1 |        107 | NULL                         |
|        10005 | 2016-03-01 |      1004 |        3 |        108 | NULL                         |
|        10006 | 2016-03-05 |      1005 |        2 |        109 | 123 Main Street, Taipei City |
+--------------+------------+-----------+----------+------------+------------------------------+
6 rows in set (0.02 sec)

References
